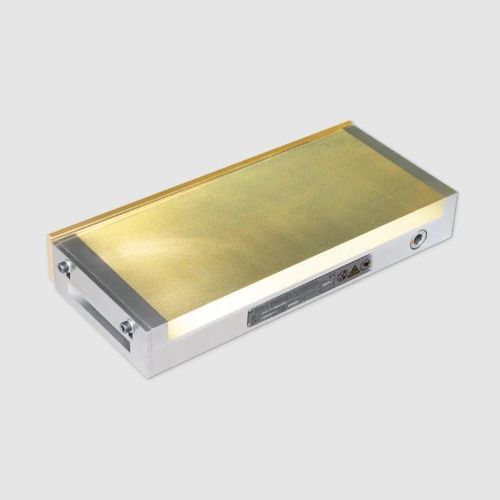

Permanent magnet magnetic chuck 243.01

rectangularfor grindingfor large parts

Suitable for chucking thin, small, medium and large workpieces. Continuous transverse pole pitch, even holding force over the entire width. Pole divisions made of 0.5 mm brass/1.4 mm steel. Available with adaptation for zero-point workholding system. Permanent magnetic chuck SAV 243.01 - 500 x 200 Designation SAV no. - A x B Rated holding force: 80 N/cm2 (140 x 70) 90 N/cm2 (from 175 x 100) Magnetic field height: 6 mm Wear layer of the pole plate: 8 mm
