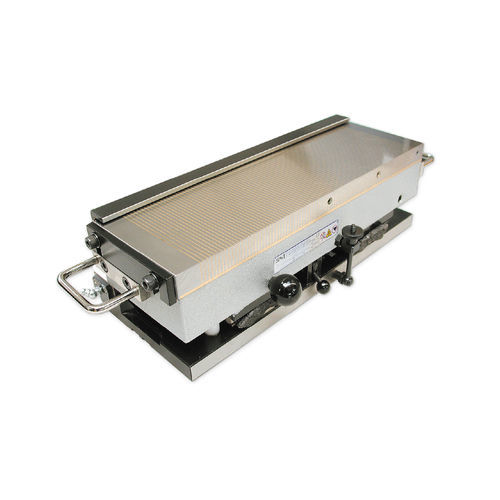

Electro-permanent magnetic chuck 245.09

sine table

The angles are determined using the gauge blocks using the sinusoidal principle. With sine table base unit made of steel. Hardened, burnished and precision-ground. Magnet housing annealed without stress. Maximum precision with flat design. 4-point contact for optimum precision. Delivered with a lifting aid, rod and sine table with degrees/minutes in mm. Precision longitudinal stop with transverse stop bar, 3 m connecting cable, painted magnet housing. Available alternatively with electrical chucks and integrated water cooling for P = 13 (EM) or electro-permanent magnetic chucks for P = 4 (EP). Precision sine table SAV 245.09 - 500 x 200 - 4 - EP - 210 V Designation SAV no. - A x B - pole pitch - version - magnet voltage Angle accuracy: ±5 arc sec Plane parallelism: ±0.005/100 mm Gauge block at 0°: 0/5 mm Swivelling range: 0° to 45° Rated holding force: 100 N/cm2 Pole pitch: 4 mm for EP magnet as per SAV 243.73 13 mm for EM magnet as per SAV 243.42 Magnet voltage: 210 V for EP 24 V or 110 V for EM
