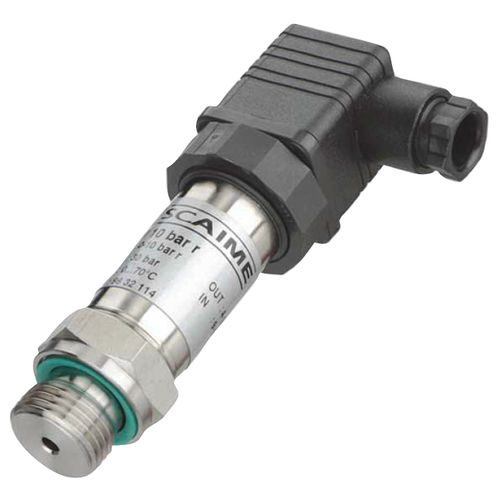

Relative pressure transmitter ATM/T
absolutepiezoresistiveanalog

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, absolute
Technology
piezoresistive
Output
analog
Fluid
for gas, for liquids
Material
stainless steel
Protection level
rugged
Other characteristics
compact, with temperature sensor
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 100 °C
(212 °F)

Min.: -25 °C
(-13 °F)

Description

Pressure and temperature transmitter/sensor 0 Bar to 1,000 Bar • Pressure sensor • Pressure and fluid temperature transmitter (-25 to +100°C) • Compact and robust construction in stainless steel • Piezoresistive technology and PT100 sensor • Relative or absolute measurement • 4/20 mA or 0/10 V signal for pressure and temperature outputs • High reliability • Protected against reverse polarity and short-circuits • Connector or cable output
