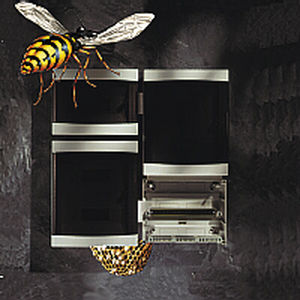

wall-mounted electrical enclosure / modular / thermoplastic / power distribution
DOMINO series

{{requestButtons}}

Characteristics

  • Configuration:

    wall-mounted, modular

  • Material:

    thermoplastic

  • Application:

    power distribution

  • Other characteristics:

    with transparent cover

  • Width:

    Max.: 434 mm

    Min.: 97 mm

  • Height:

    Max.: 550 mm

    Min.: 130 mm

  • Depth:

    Max.: 140 mm

    Min.: 84 mm

Description

The DOMINO Series IP40 flush mounting consumer units comprises 7 enclosures take respecttively 4 - 8 - 12 - 18 - 24 - 36 - 54 DIN modules.

The design of its pratical, pre-cut flush mounting box allows for easy placing of conduits for flush installations.The units and their covers are made of self-extinguishing, thermoplastic material, RAL 7035 gray and are resiatant to ù abnormal heat and fire up to 650°C (IEC 695-2-1glow-wire-test). The product material is resistant to chemical and weathering agents and highly resistant to UV rays.

The DOMINO Series flush mounting consumer units IP 40 are available whith a polycarbonate tinted window. The design makes for easy and tidy wiring as the wires can be placed under the DIN rail.

In addition, 53 and 68 mm high moulded-case circuit breakers (where there are 24 or more modules).

The window is reversible and can be opened from bith sides.
