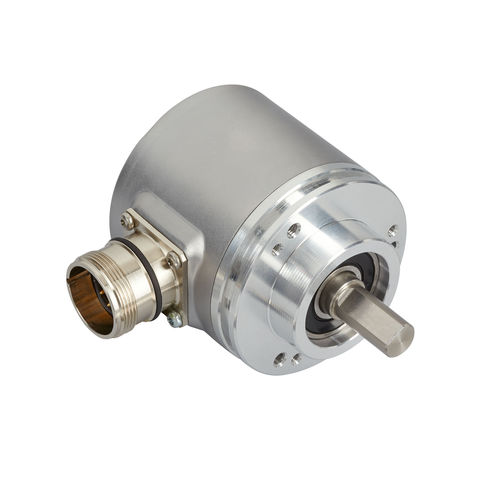

Absolute rotary encoder SAGmagneticCANopenSSI
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- magnetic
- Output signal
- CANopen, SSI, ProfiNet, PROFIBUS, EtherCAT, DeviceNet, Modbus, Powerlink, PROFIsafe
- Housing diameter
58 mm
(2.28 in)
Description
SAG
Magnetic or Optical
Diameter: - 58 mm
Resolution: - Up to 14 bits (Singleturn) Up to 16 bits (Multiturn)
Shaft: - ø 6 mm or ø 10 mm
Temperature: - -40°C to 85°C (operating)
Protocol: - SSI, CANOpen, DeviceNet, EtherCat, ModBus, Profibus, Profinet, Profisafe, Powerlink
