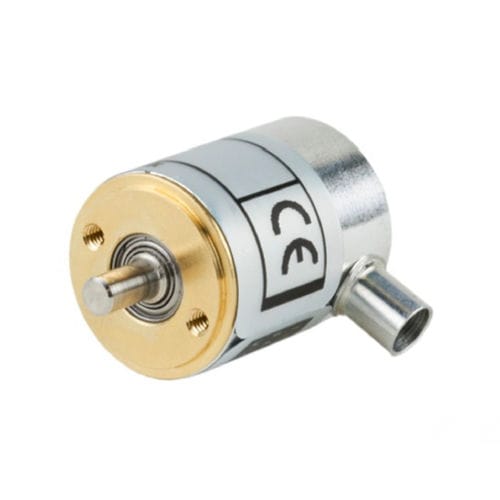

Incremental rotary encoder SCA16solid-shaftIP65IP50
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Construction
- solid-shaft
- Protection level
- IP65, IP50
- Other characteristics
- miniature
- Housing diameter
16 mm, 18 mm
(0.63 in, 0.71 in)
Description
SCA16
(Formerly named 2MCA)
Diameter:
16 mm
Resolution:
up to 5000 ppr
Shaft:
ø 1.5 mm to ø 4 mm
Temperature:
-20° C to 70° C (operating)
IP rating: - 50, 65
