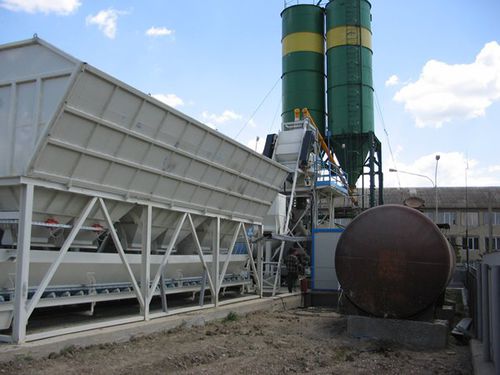

Stationary concrete batching plant T-10

automaticcontinuous

Stationary concrete plant SUMAB T-10. ECONOMY CLASS • Turbine type concrete mixer 375 liters of output of fresh vibrated inserted concrete; • Construction type: in line hoppers 8 m3each; • Coming construction for support; • Height of overhang [exhaust] 2,5 m (or more by request); • Nominal production of capacity of 15 m3/h of fresh vibrated inserted transporting concrete in continuous work (based on 60 sec continuous cycles); • 3 types of aggregates; • Weight dosing of cement, aggregates and liquid additives; • Volumetric dosing of water; Control by manual and automatic [by computer Siemens] with 100 different programs [different concrete mixtures]; Production capacity of wet concrete based on 30 sec mixing time 15 m3/h Ambient oversea height Until 1.000 m Ambient temperature for work -10 to 50 °C Working temperature of machines inside of plant 5 to 35 °C Maximum allowed wind 120 km/h Power supply 380-420 V, 50 Hz [EC standard] Volume size of mixer’s drum 560 l Output of fresh vibrated inserted concrete 375 l Nominal production capacity of concrete 15 m3/h Diameter of mixer’s drum 1550 mm Maximum weight of concrete 800 kg Engine power for mixer 11 kW Engine power for hydraulics 1.5 kW Output doors 1 pcs Covering of bottom – thickness/quality 10 mm / Hardox 300 Covering of walls – thickness/quality 10 mm / Fe 520 Maximum size of aggregate 60 mm Weight of mixer with skip 1 850 kg Number of mixing hands 4 pcs Number of scrapers 2pcs
