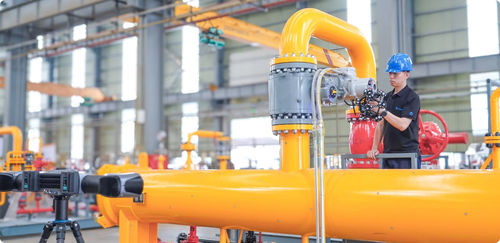

3D laser scanner head TrackScan Sharp-Z

XYZfor 3D applicationhigh performance

Overview

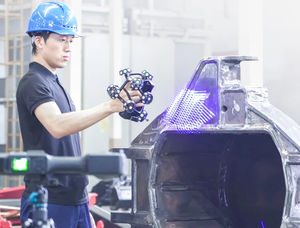

Powered by quad-cross blue laser technology, ultra-long tracking range and fully self-tracking capability, TrackScan Sharp-Z delivers fast, precise 3D measurement for large-scale applications. The system includes a dynamic rotary platform so the tracker automatically follows the scanner to maintain optimal tracking field of view, enabling up to 12 m tracking distance for seamless one-stop measurement. Dual-screen interaction between tracker and scanner simplifies operation. Fully wireless scanning with dual hot-swappable batteries enables mobile, continuous measurement in complex environments.

Key features

• Ultra-long tracking for large-scale measurement with a high-resolution 50 MP industrial camera and dynamic adaptive LED algorithm.
• Fully self tracking with dynamic rotary tracker platform, 360° measurement range and minimized repositioning.
• Dual screens on scanner and tracker for real-time device status, calibration interface and probe measurements.
• High-speed scanning: up to 200 FPS and up to 10,000,000 measurements/s for efficient capture of large components.
• Fully wireless operation with edge computing and high-speed wireless data transmission; dual-battery design for hot-swappable continuous operation.
• Customizable programmable buttons for one-touch access to frequent functions.
• Industrial-grade accuracy and structural stability with ISO 10360-13 compliance and a rigid carbon-fiber icosahedral frame.

Scanning modes

• Ultra-Fast / Extended-Depth Scanning — 140 blue laser lines (Quad-Cross Technology, implemented as 4 × 35 blue laser lines).
• Hyperfine Scanning — 21 blue parallel laser lines for high-detail surfaces.
• Deep-Hole Scanning — extra 1 blue laser line for recessed or deep features.

Technical specifications (table)
Type: TrackScan Sharp-Z
Scan mode — Ultra-fast scanning: 140 blue laser lines (Quad-Cross Technology)
Scan mode — Hyperfine scanning: 21 blue parallel laser lines
Scan mode — Deep-hole scanning: extra 1 blue laser line
Accuracy (at 5.2 m): up to 0.025 mm
Scanning frame rate up to: 200 FPS
Measurement rate up to: 10,000,000 measurements/s
Scanning area up to: 800 mm × 700 mm
Laser class: Class II (eye-safe)
Resolution up to: 0.020 mm
Volumetric accuracy examples: 13 m³ (3.5 m) → 0.039 mm; 46 m³ (5.2 m) → 0.062 mm; 80 m³ (6.2 m) → 0.089 mm; 120 m³ (7.2 m) → 0.118 mm; 200 m³ (8.5 m) → 0.149 mm; 600 m³ (12 m) → 0.198 mm
Volumetric accuracy (with MSCAN photogrammetry system): 0.039 mm + 0.012 mm/m
Form error (Sphere): 0.030 mm
Form error (Flat): 0.040 mm
Stand-off distance: 300 mm
Depth of field: 400 mm / 800 mm (large depth of field)
Output formats: .stl, .obj, .ply, .asc, .igs, .txt, .mk2, etc.
Operating temperature range: -10–40°C
Operating humidity (non-condensing): 10–90% RH
Interface mode: USB 3.0, Network Interface
Wireless operating mode: i-Scanner, i-Tracker, i-Scanner + i-Tracker, i-Tracker + i-Probe, wireless multi-tracker tracking, Edge Inspection
Certification: CE, RoHS, WEEE, FCC
Hole position accuracy: 0.05 mm
(1) Performance evaluated per JJF 1951, VDI/VDE 2634 Part 3 and ISO 10360-13 at Scanology’s ISO/IEC 17025-accredited calibration laboratory.
