3D scanner TrackScan GO

laserlaser line triangulationoptical

Overview

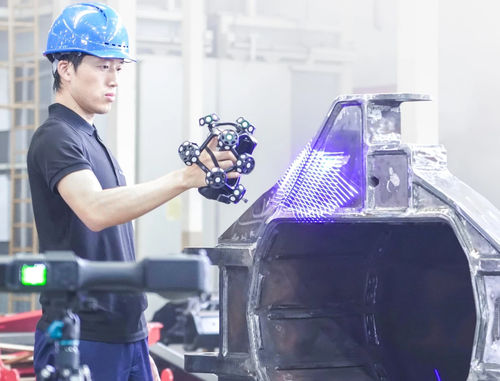

The TrackScan GO series is a portable, wireless optical 3D scanning system designed for industrial 3D measurement, inspection and metrology. Combining an i-Scanner with an i-Tracker, the system supports tracked, tracker-only and scanner-only measurement in a compact, portable setup.

The fully wireless system is designed for flexible on-site measurement, with the scanner and tracker fitting into a single protective case for easy transportation. An integrated color camera, AR overlay and intelligent guided workflows simplify CAD-to-part alignment, inspection and measurement, while one-button operation helps operators get started with minimal training.

With measurement accuracy up to 0.020 mm in scanner-only mode and up to 0.030 mm in tracked scanning mode, TrackScan GO is suitable for inspecting and measuring components ranging from small and confined areas to large and complex parts.

Key Benefits

• Portable and wireless: The scanner and tracker are compact and can be transported in a single protective case for convenient on-site measurement.
• Flexible measurement configurations: Use the tracker and scanner together for tracked 3D scanning, the tracker alone for large-area measurement, or the scanner alone for confined spaces and internal features.
• High-precision 3D measurement: Accuracy up to 0.020 mm in scanner-only scanning and up to 0.030 mm in tracked scanning.
• Fast data acquisition: Up to 6.5 million measurements per second for efficient 3D scanning of complex components.
• Color camera and AR visualization: Capture surface color information and use AR overlays to simplify CAD-to-part alignment and inspection.
• Guided operation: Intelligent workflows and one-button measurement help reduce setup time and simplify operation for users with different levels of 3D measurement experience.
• Tablet-based workflow: Compatible with the AirGO Pad for flexible measurement and inspection without a conventional PC in supported workflows.

Scanning and Measurement Modes

• Ultra-fast scanning: 34 blue laser lines (17×2) for rapid 3D data acquisition.
• Hyperfine scanning: 7 blue parallel laser lines for high-detail measurement.
• Deep-hole scanning: An additional blue laser line for measuring internal cavities and deep features.
• Tracker Large-Area scanning: 34 blue laser lines (17×2) for large-area measurement.
• Photogrammetry: Adaptive photogrammetry for large-volume measurement and volumetric accuracy.
• Accuracy and Performance

TrackScan GO is evaluated at an ISO/IEC 17025-accredited calibration laboratory and meets relevant requirements of ISO 10360-13, JJF 1951 and VDI/VDE 2634 Part 3.

• Tracked scanning accuracy: up to 0.030 mm
• Scanner-only accuracy: up to 0.020 mm
• Tracker-only accuracy: up to 0.075 mm
• Tracked scanning volumetric accuracy: 0.064 mm (GO-C) / 0.060 mm (GO-E)
• Scanner-only volumetric accuracy: 0.015 mm + 0.035 mm/m
• Tracker-only volumetric accuracy: 0.072 mm + 0.012 mm/m when paired with a scale bar
• Resolution: up to 0.020 mm
• Measurement rate: up to 6,500,000 measurements/s

Applications

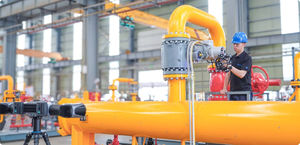

TrackScan GO is suitable for a wide range of industrial 3D measurement applications, including dimensional inspection, quality control, reverse engineering and large-part measurement. Typical industries include aerospace, automotive, mold and tooling, energy and heavy industry, railway, shipbuilding and other industrial metrology applications.

Caractéristiques / spécifications techniques

• Type: TrackScan GO-C or TrackScan GO-E
• Scan modes: Ultra-fast (34 blue laser lines), Hyperfine (7 blue parallel laser lines), Deep-hole (extra 1 blue laser line), Tracker Large-Area (34 blue laser lines), Photogrammetry (adaptive)
• Tracking distance per i-Tracker: TrackScan GO-C 2800 mm, TrackScan GO-E 3500 mm
• Accuracy (tracked scanning): up to 0.030 mm (both GO-C and GO-E)
• Accuracy (scanner-only scanning): up to 0.020 mm
• Accuracy (tracker-only scanning): up to 0.075 mm
• Volumetric accuracy (tracked scanning): GO-C 0.064 mm, GO-E 0.060 mm
• Volumetric accuracy (scanner-only): 0.015 mm + 0.035 mm/m
• Volumetric accuracy (tracker-only, paired with scale bar): 0.072 mm + 0.012 mm/m
• Sphericity: GO-C 0.040 mm, GO-E 0.035 mm
• Flatness: GO-C 0.060 mm, GO-E 0.050 mm
• Working distance (scanner): 150 mm to 450 mm (extendable to 650 mm); Hyperfine scanning: 120 mm to 300 mm
• Working distance (tracker): 500 mm to 1500 mm (extendable to 2500 mm)
• Scanning area (scanner): 500 mm × 600 mm
• Scanning area (tracker): 2500 mm × 2000 mm
• Laser class: Class II (eye-safe)
• Resolution up to: 0.020 mm
• Measurement rate up to: 6,500,000 measurements/s
• Dimension of i-Scanner: 197.6 mm × 191.3 mm × 234.2 mm
• Weight of i-Scanner: 860 g (excluding battery)
• Dimension of i-Tracker: 418.6 mm × 122.1 mm × 83.9 mm
• Weight of i-Tracker: 1580 g (excluding battery)
• Size of protection case: 660 mm × 499 mm × 329 mm
• Output formats: .stl, .obj, .ply, .asc, .igs, .txt, .mk2, etc.
• Operating temperature range: -10°C to 40°C
• Operating humidity range (non-condensing): 10-90% RH
• Wireless standard: Wi‑Fi 6, 802.11a/b/g/n/ac/ax
• Interface mode: USB 3.0 Type-C
• Patents: multiple international patents (US, EP, KR, CN and others)
• Standards / evaluation: Performance evaluated according to JJF 1951, VDI/VDE 2634 Part 3, and ISO 10360-13 at an ISO/IEC 17025-accredited calibration laboratory
