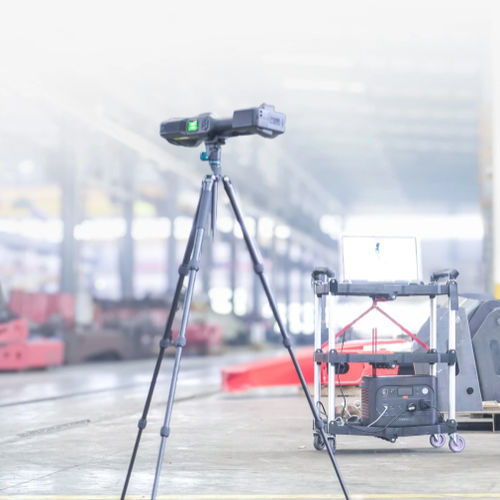

3D scanner TrackScan GO

for reverse engineeringmultipurposefor inspection

Overview
TrackScan GO is a portable optical 3D scanning system designed for industrial on-site measurement. The lightweight, compact kit fits in a single transport case and enables fully wireless operation from a tablet. The system supports three measurement configurations (tracker + scanner combined, tracker-only for long-range wide-area capture, scanner-only for handheld access to tight spaces). Conforms to ISO 10360-13 and integrates a color camera with AR overlay, intelligent guidance and one-button measurement for rapid deployment.

Key features

• Portable kit: tracker and scanner are compact and stow in one protective case for single-user transport.
• Wireless operation: tablet-based AirGO Pad option reduces need for cables, PCs and external power.
• Plug-and-play setup: intelligent sensors handle automatic power-on and connection to start scanning immediately.
• DefinSight workflow: industrial measurement software with guided procedures and automated inspection sequences for repeatable reports.
• Color camera with AR overlay: CAD-to-part alignment and visual recording of defects (scratches, dents) directly on the 3D model.
• Flexible measurement modes: combined tracker+scanner, tracker-only for large-area capture, scanner-only handheld for tight or internal cavities.
• Multiple laser modes: Ultra-Fast, Hyperfine, Deep-Hole and Tracker Large-Area scanning to address diverse applications.
• Ergonomic controls and collaboration: one-touch buttons and dual displays on scanner and tracker for intuitive operation and team workflows.
• Industrial accuracy and stability: accuracy monitoring across metrics—volumetric accuracy, sphericity and flatness.

Scan modes (summary)

• Ultra-fast scanning — 34 blue laser lines (TrackScan GO-C / TrackScan GO-E)
• Hyperfine scanning — 7 blue parallel laser lines
• Deep-hole scanning — additional single blue laser line for cavities
• Tracker large-area scanning — 34 blue laser lines for wide coverage
• Photogrammetry — adaptive photogrammetry support

Applications

• Aerospace
• Mold and toolmaking
• Automotive
• Energy and heavy industry
• Railway and shipbuilding
• Non-industrial metrology and reverse engineering

Notes and compliance
Performance evaluated according to JJF 1951, VDI/VDE 2634 Part 3 and ISO 10360-13 in an ISO/IEC 17025-accredited calibration laboratory. Some tracker-only volumetric results require pairing with a high-precision scale bar. Manufacturer reserves the right to modify specifications and images within legal scope.
