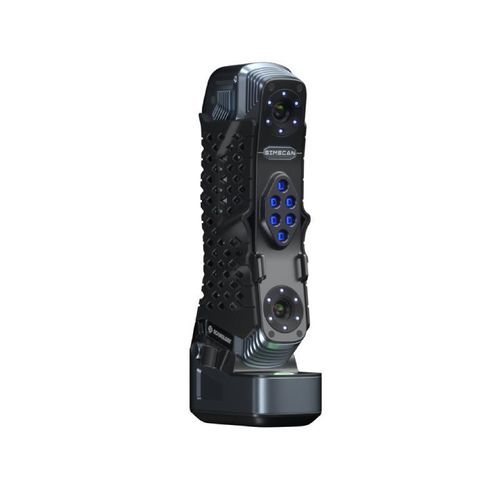

3D scanner SIMSCAN-S Gen2

inspectionfor reverse engineeringfor the automotive industry

Overview
The SIMSCAN-S Gen2 is a palm-sized 3D scanner designed for feature-level metrology and inspection in high-end manufacturing environments (aerospace, advanced machining, automotive, mold, energy and heavy industry). It provides traceable measurements for verification of GD&T-critical characteristics and tight tolerances.

Key benefits

• Palm-sized, lightweight magnesium-alloy housing for ergonomic handheld use (approx. 560 g).
• Wireless freedom with integrated edge computing and wireless data transfer for operations in confined spaces or at height.
• Ultra-fast data capture (high measurement rate and frame rate) for complex geometries and demanding scanning tasks.
• Compliance with ISO 10360 series for traceable and repeatable performance.

Scanning modes & optical system
The scanner supports multiple modes to address different part types and features:
Scan mode (Ultra-fast): 108 blue laser lines (Quad Cross Technology)
Hyperfine scanning: 17 blue parallel laser lines
Deep hole scanning: 1 extra blue laser line for narrow/deep features

Performance highlights

• Accuracy: 0.015 mm (standard SIMSCAN-S Gen2 performance)
• Volumetric accuracy (standard): 0.015 mm + 0.03 mm/m
• Adaptive photogrammetry (with scale bar): 0.015 mm + 0.012 mm/m
• Maximum measurement rate: 8,100,000 measurements/s
• Maximum frame rate: up to 180 FPS
• Maximum scanning area: 700 mm × 600 mm

Design & usability

• Ergonomic handheld form factor with detachable charging base and intuitive display for real-time monitoring.
• Short-baseline camera design for capturing gaps, deep holes, slots and channels at steep viewing angles.

Outputs & interfaces

• Output file formats: .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk, etc.
• Interface: USB 3.0
• Wireless: Wi‑Fi 6 (802.11a/b/g/n/ac)

Compliance & traceability
Performance evaluated to ISO 10360-13 (ISO 17025 accredited lab), VDI/VDE 2634 Part 3 and JJF1951 specifications. Patents and intellectual property protections apply.

Table — Selected technical specifications
Type: SIMSCAN-S Gen2 (SIMSCAN-E Gen2 alternative)
Scan mode (Ultra-fast): 108 blue laser lines (Quad Cross Technology)
Scan mode (Hyperfine): 17 blue parallel laser lines
Scan mode (Deep hole): 1 extra blue laser line
Accuracy (1): 0.015 mm (SIMSCAN-S Gen2) — SIMSCAN-E Gen2: up to 0.020 mm
Scanning rate up to: 8,100,000 measurements/s
Scanning area up to: 700 mm × 600 mm
Laser class: CLASS II (eye-safe)
Resolution up to: 0.020 mm
Volumetric accuracy (standard): 0.015 mm + 0.03 mm/m
Adaptive Photogrammetry (paired): 0.015 mm + 0.012 mm/m
Sphericity: 0.025 mm
Flatness: 0.035 mm
Stand-off distance: 300 mm
Depth of field: 550 mm
Output formats: .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk, etc.
Interface mode: USB 3.0
Dimensions: 203 mm × 80 mm × 44 mm
Weight: 560 g
Operating temperature range: -10–40°C
Operating humidity (non-condensing): 10 ~ 90% RH
Wireless standard: Wi‑Fi 6 (802.11a/b/g/n/ac)

caractéristiques / spécifications techniques

• Model: SIMSCAN-S Gen2
• Accuracy: 0.015 mm
• Volumetric accuracy (standard): 0.015 mm + 0.03 mm/m
• Adaptive photogrammetry accuracy: 0.015 mm + 0.012 mm/m (with scale bar)
• Sphericity: 0.025 mm
• Flatness: 0.035 mm
• Measurement rate: up to 8,100,000 measurements/s
• Frame rate: up to 180 FPS
• Scan area (max): 700 × 600 mm
• Stand-off distance: 300 mm
• Depth of field: 550 mm
• Laser system: 108 blue laser lines (quad-cross) + 17 parallel lines (hyperfine) + extra line for deep holes
• Laser class: CLASS II (eye-safe)
• Resolution up to: 0.020 mm
• Output formats: .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk, etc.
• Interface: USB 3.0; Wireless: Wi‑Fi 6 (802.11a/b/g/n/ac)
• Dimensions: 203 × 80 × 44 mm; Weight: 560 g
• Operating temperature: -10–40°C; Operating humidity: 10–90% RH (non-condensing)
• Standards: ISO 10360-13; tested in accredited lab (ISO 17025); VDI/VDE 2634 Part 3; JJF1951
