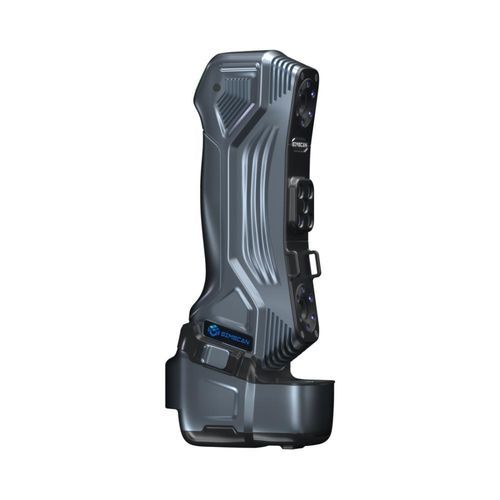

3D scanner SIMSCAN-E

for quality controlinspectionfor reverse engineering

Product overview
The SIMSCAN-E is an intelligent, wireless, palm-sized 3D scanner with a compact full-metal body and integrated edge computing. It supports wired and wireless operation, dual hot-swappable batteries for extended use, and the DefinSight software platform to streamline scanning workflows and common 3D outputs for downstream processing.

Key features

• High measurement throughput: up to 6,300,000 measurements/s enabled by advanced algorithms.
• Versatile scan modes: Ultra-fast (63 blue laser lines, Triple Cross Technology), Hyperfine (17 parallel blue lines) and Deep-hole (1 extra blue line) to adapt to complex geometries.
• Multiple laser-line configurations and up to 180 FPS frame rate for smooth scanning.
• High detail capture: measurement accuracy up to 0.020 mm and sub-pixel feature extraction for fine features.
• Compact and portable: full-metal body 203 × 80 × 44 mm, weight 600 g for one-handed use.
• On-device edge computing and Wi‑Fi 6 wireless transfer for cable-free scanning.
• Dual hot-swappable batteries and detachable charging base for continuous operation and easy switching between wired and wireless modes.

Technologies & components

• Industrial high-definition cameras and image enhancement algorithms.
• Sub-pixel feature extraction algorithm for improved geometry fidelity.
• Integrated edge-computing platform inside the scanner.
• Wireless: Wi‑Fi 6 (802.11a/b/g/n/ac) and USB3-B interface.

Applications

• Aerospace
• Mold making and tool inspection
• Automotive: on-site inspection of stamping dies and dashboards
• Energy and heavy industry
• Railway and shipbuilding
• Reverse engineering and quality inspection

Notes
Delivered with DefinSight software and supporting common 3D output formats (.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk). Suitable for shopfloor and remote scanning tasks thanks to wireless operation and compact design.

Technical specifications

• Type: SIMSCAN-E
• Scan modes: Ultra-fast — 63 blue laser lines (Triple Cross Technology); Hyperfine — 17 parallel blue lines; Deep-hole — 1 extra blue line
• Accuracy (probing error, ISO 17025): up to 0.020 mm
• Scanning rate: up to 6,300,000 measurements/s
• Scanning area: up to 700 mm × 600 mm
• Laser class: CLASS Ⅱ (eye-safe)
• Resolution: up to 0.020 mm
• Volume accuracy (standard): 0.015 mm + 0.035 mm/m
• Volume accuracy (with MSCAN-L15): 0.015 mm + 0.012 mm/m
• Stand-off distance: 300 mm
• Depth of field: 550 mm
• Output formats: .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk
• Dimensions: 203 mm × 80 mm × 44 mm
• Weight: 600 g
• Operating temperature: -10°C to 40°C
• Interface: USB3-B
• Wireless: Wi‑Fi 6, 802.11a/b/g/n/ac
• Patents: multiple CN patents listed by the manufacturer
