Rugged dimensional inspection system AM-CELL C series

non-contact

Overview

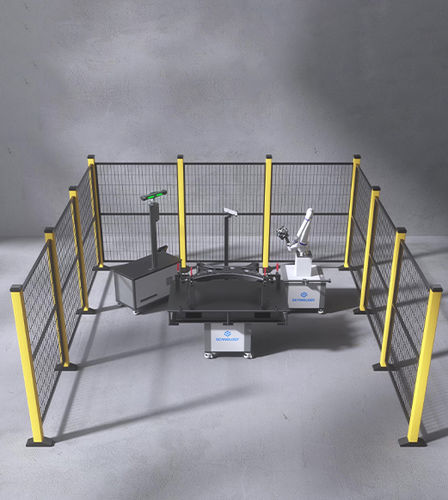

The AM-CELL C Series is an automated optical 3D inspection system that integrates a 3D scanner, robot, 3D digitization software (DefinSight), and a central control platform. It is designed for complex parts and medium-to-large structural components, automating the entire workflow from path planning and measurement to analysis. Modular units enable flexible layouts and multi-positioner operations, supporting loads from 200–1000 kg and handling metal sheets, die-cast parts, welded assemblies, battery packs, and more.

Key Capabilities

• Pro-Level Automated Measurement: Automates path planning, measuring, and analysis with DefinSight 3D software and parallel processing.
• Simulation & Validation: Digital Measurement Room (DMR) provides virtual path planning and collision simulation with no programming skills required.
• Fully Automated Operation: Non-contact optical measurement automatically recognizes holes, slots and edges; automates part identification, scanning and report generation.
• Smart Error-Proofing: Vision-based verification of part type, placement and clamping to prevent mis-scans.
• Smart Data & Monitoring: Direct import of inspection results to MES/PLC/QMS; integrated SPC and trend analysis for traceable quality management.
• Smart Modular Design & Scalability: Standard modules and multi-positioner setups enable flexible deployments from single stations to full line integration.
• Engineered for Shop-Floor: High-precision sensors and automatic calibration maintain consistent measurements under harsh conditions.
• High-Precision Optical Measurement: Next-generation optical 3D scanners can achieve up to 0.020 mm accuracy at up to 6.63 million measurements/s.
• Unattended Auto-Calibration: Environmental sensors monitor temperature, humidity and lighting and perform self-calibration without human intervention.

Technical specifications
Type: AM-CELL C13X | AM-CELL C18X
Space Size: 4.0 m × 3.0 m | 5.0 m × 4.0 m
Robot Type: Cobot, reaching 1300 mm | Cobot, reaching 1800 mm
3D Scanner Supported: Full series of SCANOLOGY's Optical 3D Measurement System
Communication Protocol: TCP/IP, USB 3.0, OPC UA
Expanded Communication: Socket, Modbus-TCP (C13X); Socket (C18X)
Safety Mode: Active Emergency Stop + Safety with Force Feedback
Input Voltage: AC ~ 220 V / 50–60 Hz
Equipment Power: 1.5 kW (C13X) | 3.0 kW (C18X)

Turntable options
Turntable Type: TT200 | TT500 | TT800 | TT1100
Payload: 200 kg | 500 kg | 800 kg | 1000 kg
Maximum Object Size: TT200: Ø ≤ 1200 mm H ≤ 1000 mm; TT500: Ø ≤ 1500 mm H ≤ 1200 mm; TT800: Ø ≤ 1800 mm H ≤ 1500 mm; TT1100: Ø ≤ 2200 mm H ≤ 1800 mm
Turntable Power: 0.75 kW | 1.0 kW | 1.5 kW | 2.0 kW
Motor Type: Absolute Servo Motor

Applications

• Aerospace
• Mold
• Automotive
• Energy & Heavy Industry
• Railway and Ships
• Non-industry and other medium-to-large part inspections

Features / Technical specifications

• Automated optical 3D inspection combining scanner, robot and central control.
• DefinSight software for smart path planning, high-precision measurement and automated reporting.
• Supports modular layouts and multi-positioner setups; scalable from single station to production line.
• High accuracy: up to 0.020 mm with high measurement throughput (millions of points/s).
• Unattended multi-dimensional auto-calibration (temperature, humidity, lighting).
• Interfaces: TCP/IP, USB 3.0, OPC UA; optional Socket / Modbus-TCP integration.
• Safety: Active emergency stop combined with force-feedback safety.
• Turntable variants for payloads 200–1000 kg and object diameters up to Ø ≤ 2200 mm.
