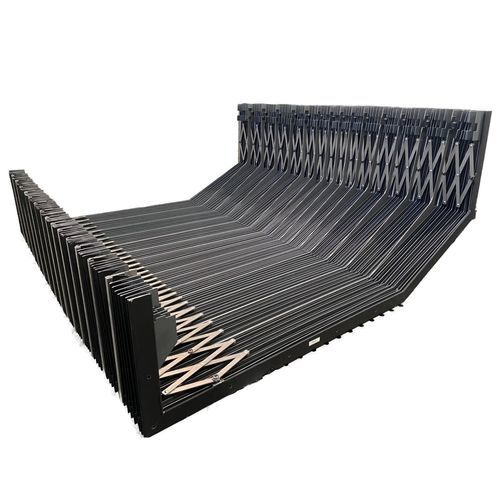

Elbow protective bellows FoldPro Pantograph

plasticfor machine tools

Overview
FoldPro Pantograph is the SCC solution of protective bellows with a pantograph structure, designed to ensure synchronized, uniform and controlled movements even over very long strokes.

Bellows with pantographs
FoldPro Pantograph is a protective bellow system featuring a mechanical pantograph structure that guarantees regular openings and smooth movement, maintaining the correct geometry of the protection throughout the entire stroke.

Versatility and flexibility
Thanks to the mechanical pantograph system, these bellows ensure regular openings and smooth movement while keeping protection geometry stable across the full travel. They are particularly suitable for industrial applications requiring stable guidance and long-term reliability under extended strokes.

Ideal for

• Machine tools with long strokes
• Dynamic protection of guides and moving components

Benefits

• Smooth, synchronized and controlled movement
• Maintained geometry and high bellows stability over long travel
• Long service life in intensive industrial applications

Technical characteristics / specifications

• Product family: FoldPro Pantograph protective bellows
• Structure: mechanical pantograph ensuring synchronized, uniform and controlled movements
• Performance: designed for very long strokes while maintaining protection geometry
• Applications: machine tools with long strokes, dynamic protection of guides and components
• Key benefits: smooth controlled movement, high stability, long service life in intensive use
