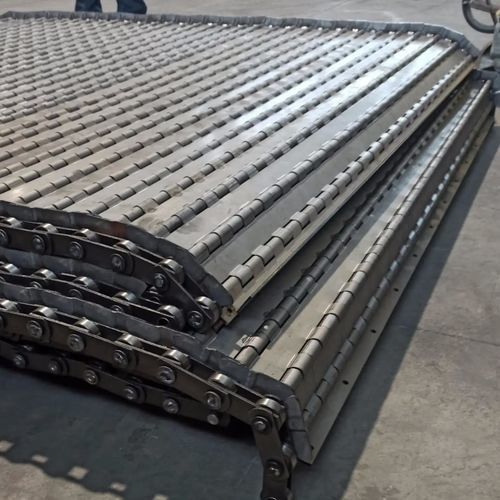

Continuous conveyor belt

modularperforatedsteel

Overview
The HingedBelt Series is SCC's solution for efficient handling of metal chips, scrap and finished parts within industrial plants. These are steel hinged belts engineered to provide mechanical strength, continuous operation and reliability in heavy-duty environments.

Features

• Steel hinged belts for conveying metal chips, scrap and finished parts
• Designed for mechanical strength and continuous operation under heavy loads
• Modular, highly customizable construction for site-specific configurations
• Made-to-measure options according to material type, conveyed volume and working intensity

Technical options (table)
PITCH mm | CENTER CURL | HIDDEN CURL | BLIND | PERFORATED | FOLDED WING | WELDED WING | TRIMMED WING | PIN SECTION mm | ROLLER CHAIN SECTION mm
31.75 | X | | x | x | | x | | 5 | 19
38.1 | X | X | X | X | | X | | 6 | 22
50 | X | X | X | X | | X | X | 10 | 31
63 | X | X | X | X | X | X | X | 12 | 40
75 | X | X | X | X | X | X | X | 12 | 40
100 | X | X | X | X | X | X | X | 12 | 40
125 | X | X | X | X | X | X | X | 12 | 40

Technical specifications

• Series name: HingedBelt Series
• Material: steel hinged belts
• Primary application: transport of metal chips, scrap and finished parts in industrial systems
• Design: modular and highly customizable; made-to-measure configurations available
• Available pitches (examples):
  • 31.75 mm — center curl available; blind available; perforated available; welded wing available; pin section: 5 mm; roller chain section: 19 mm
  • 38.1 mm — center curl, hidden curl, blind, perforated and welded wing available; pin section: 6 mm; roller chain section: 22 mm
  • 50 mm — multiple curl/edge options; trimmed wing available; pin section: 10 mm; roller chain section: 31 mm
  • 63 / 75 / 100 / 125 mm — broad option set; pin section: 12 mm; roller chain section: 40 mm
• Typical customizations: edge/curl type (centered, hidden), perforation, folded/welded/trimmed wings, selection of pin and roller chain sections
