Cable production processing station IDC Station

automatic

Product overview

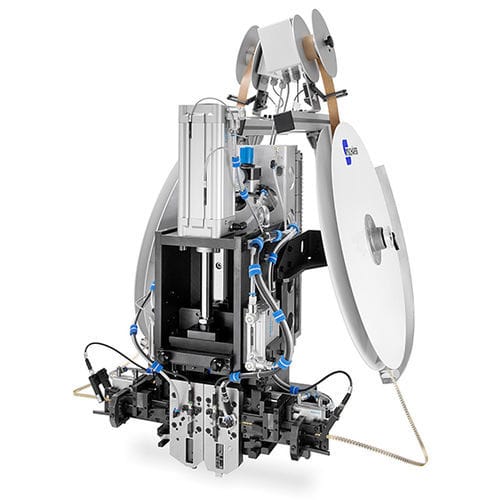

Station for production of Insulation Displacement Connections (IDC) designed for integration on machines and automated wire-processing systems. The IDC station automates contacting of insulated wires directly into connector contacts without prior stripping, enabling precise and repeatable connections for series production.

Functionality of the process
Insulated wires are pressed into shaped IDC contact slots. Sharp-edged blades inside the slots cut through the insulation during pressing and establish the electrical contact. The method is fast, suitable for high-volume production, and allows simultaneous contacting of multi-core cables.

Advantages of IDC solutions

• No stripping of wires necessary
• High electrical connection quality
• Compact connection footprint
• Fast processing for series production
• Gas-tight and durable connection

Typical applications

• Data cables in computers and industrial equipment
• Signal cables for industrial control and automation
• Connections to stators and other components of electric motors

Caractéristiques / spécifications techniques

• Process type: Insulation Displacement Connection (IDC)
• Automation: station for integration on machines and automated wire-processing systems
• Contact method: insulated wires pressed into shaped IDC contact slots; internal sharp-edged blades cut insulation and establish contact
• Suitable for series production and simultaneous contacting of multi-core cables
• No pre-stripping of wires required
• Connection properties: gas-tight, durable, high electrical connection quality
• Compact solution with fast processing capability
