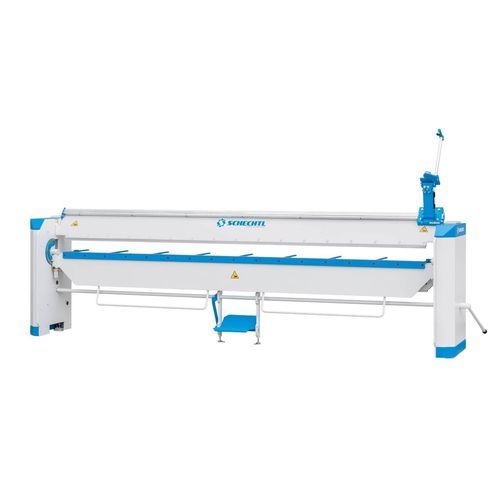

Manual swivel folding machine HA series

sheet metalprecisionconstruction

THE STURDY POWERHOUSE. PRECISION BENDING FROM 1 TO 4 METRES WORKING LENGTH THE STURDY POWERHOUSE. THE HA. The model HA is the strongest manual swivel bending machine in the Schechtl range and can be supplied with working lengths of 1 metre to 4 metres. It is a particularly budget-friendly alternative where it is not possible or not recommendable to use motorized machines. And all this without compromising on power, precision and application options. Strong. All beams areof particularly solid constructionfor a higher bending capacity For theperfect cut. Roller shear available as an option Flexible. All rails can be changed Hands stay free. The wide foot pedal boostsprecision andspeed duringpositioning of the workpiece Benefits - Specially designed for thick and long sheets - Extremely sturdy and powerful - 1-man operation with minimum effort - Versatile through a comprehensive range of accessories - High working convenience – back-friendly working height HA 100 The manual swivel bending machine HA 100 bends steel sheets up to max. 3.00 mm, referred to 1040 mm working length. The combination of solid machine elements in welded construction and a sophisticated spring system as weight compensation for upper and bending beam makes the HA model a powerhouse and guarantees operation without exertion. HA 150 The manual swivel bending machine HA 150 bends steel sheets up to max. 2.50 mm, referred to 1540 mm working length. The combination of solid machine elements in welded construction and a sophisticated spring system as weight compensation for upper and bending beam makes the HA model a powerhouse and guarantees operation without exertion.
