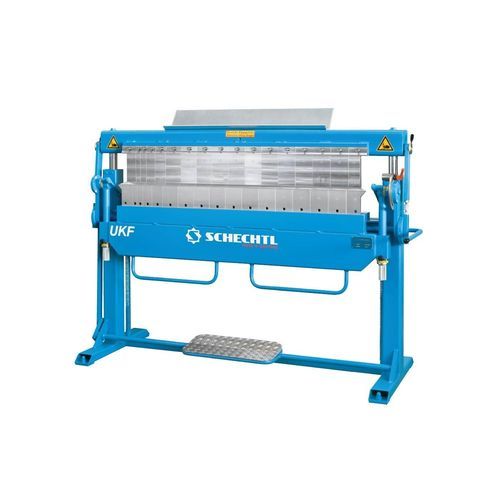

Segment swivel folding machine UKF series

sheet metalmanuallarge

XXL free space. EASY AND PERFECT BENDING OF COMPLEX FORMS YOUR MULTI-TALENTED MACHINE. THE UKF. The Schechtl UKF handles the production of special shapes, box and cassette forms and adjustment tasks. On the clamping beam, the UKF offers space for segment inserts with a height of 160 mm or 180 mm. The segments on the lower and bending beam are 120 mm high - 100 % more free space compared with the UK or UKV. This offers many benefits when producing large, closed forms. Benefits - Extra-high segments for more free space during bending - Full flexibility in the production of large, closed forms - Segments with the original Schechtl quick clamping system - Tool-free adjustment of all segments supplied in the 3 areas lower, bending and clamping beam - Foot pedal for hands-free clamping of the workpiece - Practical: storage tray for the segments - Storage box for accessories and tools that also serves as a sheet support - Tool-free adjustment of the lowering of the bending beam - Tool-free quick adjustment of the upper beam clamping pressure UKF 100 The UKF 100 segment bending machine has a working length of 1000 mm and bends 1.50 mm steel. The extra large free space of the UKF enables the production of particularly large closed shapes. UKF 125 The UKF 125 segment bending machine bends 1.50 mm steel at 1250 mm working length. The extra large free space of the UKF enables the production of particularly large closed shapes. UKF 150 The UKF 150 segment bending machine has a working length of 1500 mm and bends 1.50 mm steel. The extra large free space of the UKF enables the production of particularly large closed shapes.
