Regulating control unit IS Q3

for CNC machines

Product overview
Control unit for Schick industrial spindles with external control and power option. Designed for integration in CNC machines and tool machines; provides spindle start/stop, direction control and speed regulation. Wide speed range and high torque output for demanding machining applications. Optional external 48 V supply can be used as an alternative to the internal power supply.

Functions

• Spindle start/stop
• Direction of rotation
• Speed control

Scope of delivery

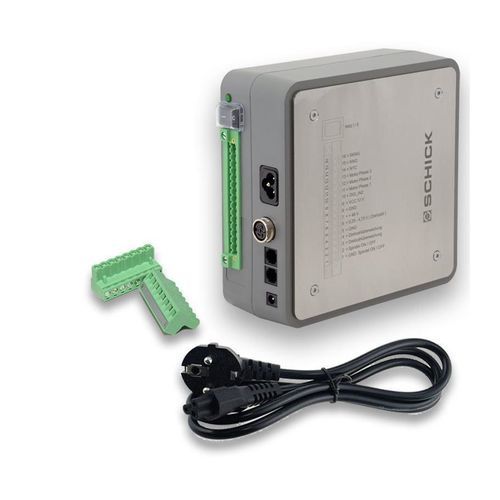

• Control unit IS Q3 (Art. No. 10875)
• Electrical connectors
• Mains cable
• Wall-mount bracket

Technical data

• Dimensions: 180 x 73 x 185 mm
• Weight: 1440 g
• Supply voltage: 100–240 V AC; optional external 48 V DC
• Power: 300 W (max. 370 W)
• Motor technology: brushless DC motor
• Speed range: 200–60,000 rpm or 1,000–100,000 rpm
