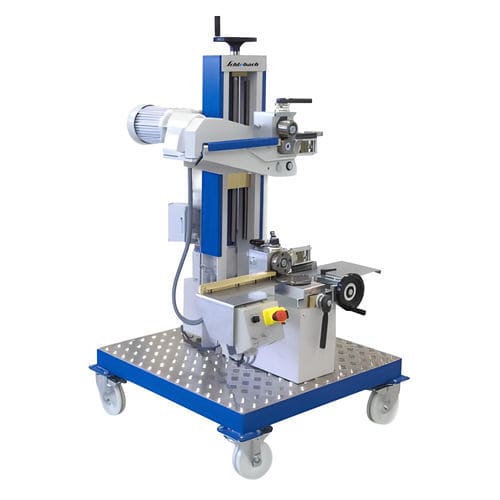

Electric bending machine RBM series

profileautomatic

Robust round arch curving machine for convex bending of pre-profiled panels for use as dormers, round arches, domes or barrel-vault roofs with and without clip relief in the heights 25, 32 or 38 mm. Tailored to the double standing seam of the Schlebach profile shaping machines Adjustable contact pressure, depending on the radii Seamless production of changing radii in a panel Seperately powered bending units for the female and male profile side Panels with male profile on both sides in one work cycle Conical and tapered panels or panels with female profile on both sides can be produced in multiple passes Width adjustment using handwheel Printed table shows necessary contact pressure Working speed continuously variable from 0 to 12 m/min Optionally also for profile heights 32 and 38 mm by exchanging bending rollers Large number of possible shapes:
