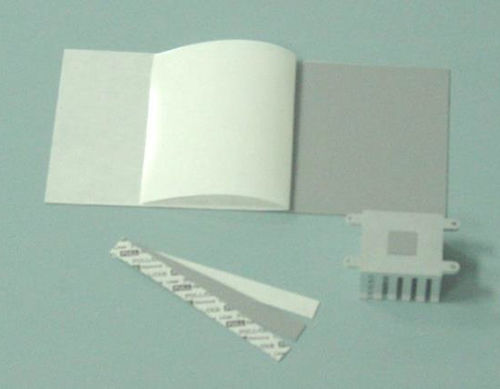

OC-7300 is a thermally conductive phase change material having a softening temperature of 50-65℃. The liquid phase of the material can fill interface irregularities with much higher
efficiency than traditional gap filler. On the other hand, it is a solid at room temperature and can be handled easily during installation.
OC-7300 is RoHS compliant and conforms to halogen-free standard. It is naturally tacky and additional adhesive is generally not required.
Features and Benefit
4.0W/m-K
Naturally tacky
RoHS compliant
Halogen-free
Color -
Grey
Thickness Range [inch/(mm -
0.005(0.127)~0.020(0.500)
Thermal Conductivity [W/mK] -
4
Phase Change Temperature [°C] -
55°C
Operation Temperature [°C] -
-40°C~130°C
Halogen-Free [under 700ppm] -
Yes
