High-voltage tester

resistancefor electrical installationsindustrial

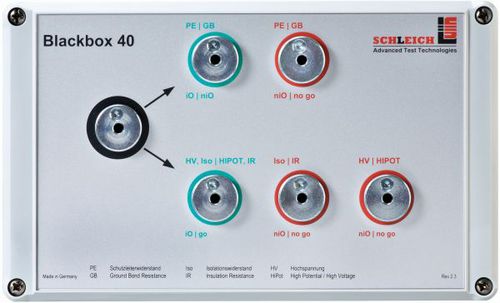

According to the VDE regulations, testers must be subjected to a function check at regular intervals. It must be ensured that the tester measures correctly. A test dummy is used for this purpose. It usually consists of reference resistors whose measured values are marked on the outside of the test dummy. The test dummy is connected to the test leads of the tester. Based on the reference resistors and the test voltages coming from the tester, corresponding test currents flow through the resistors. The test performed should confirm these reference values within preset tolerances. Other common names for the test dummy are: Black Box, Self-Test Black Box, Setting Master, Measuring Master or Golden Device. Blackbox as proof of functionality. • Compact • Easy to handle • stable over time • Includes company calibration certificate • Also available with DAkkS-calibration For the daily, regular tester inspection a blackbox (test dummy) is connected to the respective tester. It is checked, if the measured values correspond to the values determined by the blackbox. If this is not the case, the tester locks itself and is only released if a blackbox test is performed with corresponding result. As we only deliver testers which have been digitally evaluated, this test is normally not carried out by means of a “GO/ NOGO-blackbox”, but we only use one single blackbox and evaluate the arising measuring results within straight tolerance limits. In case a blackbox test ends with a NOGO-result (not o.k.), the tester locks itself. In this case, the reason for the deviation has to be determined and eliminated first. Only in case of a GO-result (o.k.) the tester is released.
