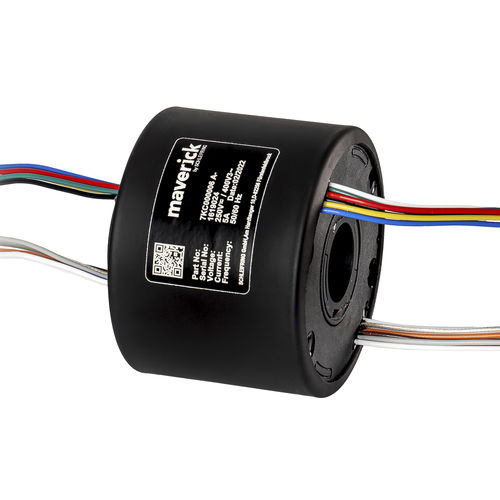

Hollow-shaft slip ring 7KC000006roboticfor medical devicesfor strain gauges
Add to favorites
Compare this product
Characteristics
- Construction
- hollow-shaft
- Applications
- robotic, for medical devices, for strain gauges, for medical equipment, for rotary tables, for packaging, industrial, for wind turbine, for electric motors, for cameras, for machine tools, for robots, for CCTV applications, for stage lighting, for UAVs, packaging machine, medical
- Other characteristics
- IP50
- Voltage
250 V
- Primary current
5 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 300 rpm
(1,885 rad.min-1)- Number of channels
12 unit
- Internal diameter
25.4 mm
(1 in)- External diameter
88 mm
(3.46 in)
Description
Diameter inner [mm]:: - 25,4
Diameter outer [mm]: : - 88
Lead Wire Length [mm]:: - 250 (Stator and Rotor)
