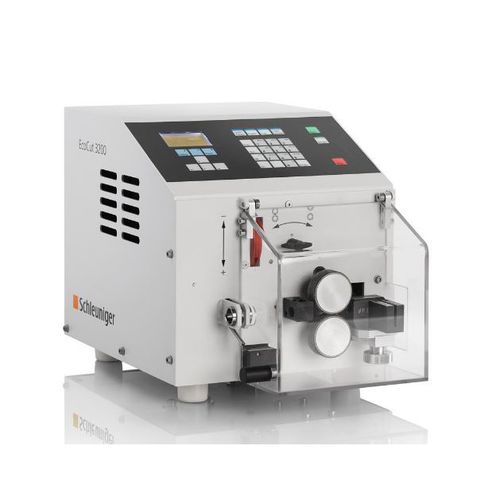

Wire cutting machine EcoCut 3200

for aluminumcableautomatic

The newest automatic cutting machine from the Schleuniger product family is the EcoCut 3200, which can be configured according to individual needs and allows users to measure and cut cables, wires and tubes. - Unique tube cutter principle (double-cutting mode) - Precise & repeatable results - Easy to program and operate (menu guided) - Excellent price/performance ratio - Fast and quiet transport system The EcoCut 3200 is an automatic cutting machine for measuring and cutting round material. It can be equipped with either a tube cutting head or a universal cable cutting head. The tube cutting head can process tubing up to 12.7 mm (0.5") O.D. with outstanding quality. The universal cable cutting head can process wire, cable and tubing up to 10 mm (0.39") O.D. The EcoCut 3200 can be used as a stand-alone machine or it can be integrated into a processing line. The EcoCut 3200 is electronically controlled and features several interfaces for peripheral components. The electrically driven rollers feed the material to the cutting unit. The cutting unit is electrically driven and position controlled.
