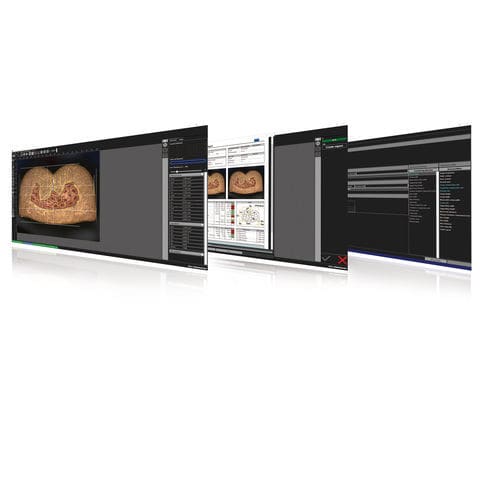

Measurement software CrimpLab 3

managementanalysisprocess

The CrimpLab 3 analysis and measurement software was developed with a focus on the efficient, intuitive and user-friendly testing of crimp cross sections, and is available in two versions: a Standard and an Automatic version. CrimpLab 3 allows you to quickly create measurement routines and testing jobs based on modular data, customize measurement functions to your needs, and make use of a wide range of preimplemented additional measurement functions. Material-specific data need to be created only once, and can easily be retrieved to set up jobs or test logs, which has a positive effect on the management of your master data. Moreover, measurement routines and workflows can be defined to customer specifications, as well as work procedures programmed, stored and reused, saving time in preparation and analysis. CrimpLab 3 Automatic automates numerous functions that need to be executed manually or with mouse clicks in the Standard version. The process of detecting inner and outer conductors of the terminal, for example, has been automated in a way that allows the user to completely dispense with the need to manually trace the cable contour for identifying the relevant factors. CrimpLab 3 Automatic provides fully automatic and efficient crimp cross-section analysis within seconds. CrimpLab 3 can be used with the Schleuniger systems MicroGraph and SawInspect, and comprises, among others, all the tools required to perform measurements according to Volkswagen standard VW 60330. The software can be used to count wires, determine degrees of crimp, crimp symmetries, cavity ratios, physical measurement data from a crimp height measuring unit, and specifically created measurements.
