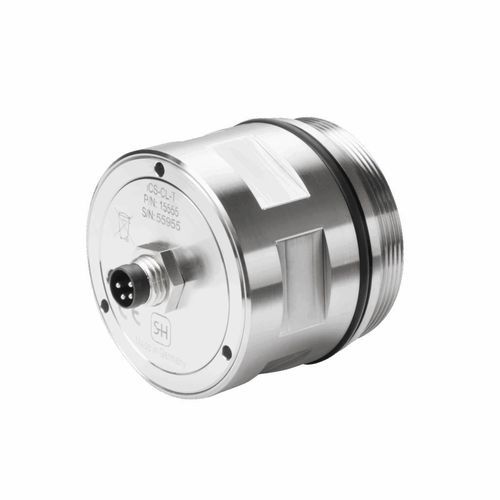

Concentration sensor iCS² CL
Add to favorites
Compare this product
Description
Overview
The iCS² CL inline sensor is a compact, easy-to-install concentration sensor developed for reliable, maintenance-free monitoring of cooling lubricants, cutting oils and related metalworking fluids. It continuously measures fluid concentration directly in the running process without manual sampling and delivers stable values even under heavy contamination, helping to reduce tool wear and ensure consistent product quality.
Key features
Integration & functions
Applications
The sensor is optimized for monitoring concentrations in cutting oils, cooling lubricants and similar fluids. Typical sectors include electronics, precision mechanics, optics, automotive and general mechanical engineering where continuous concentration control is critical to machining quality and tool life.
Additional product information
Technical specifications
The iCS² CL inline sensor is a compact, easy-to-install concentration sensor developed for reliable, maintenance-free monitoring of cooling lubricants, cutting oils and related metalworking fluids. It continuously measures fluid concentration directly in the running process without manual sampling and delivers stable values even under heavy contamination, helping to reduce tool wear and ensure consistent product quality.
Key features
- Compact, lightweight design for space-limited installations
- Continuous, real-time concentration measurement for cooling lubricants and cutting oils
- Robust against ambient light and contamination — stable values without frequent cleaning
- Direct PLC connection via RS485 Modbus RTU for easy system integration
- Integrated temperature measurement and level detection for device self-monitoring
- Output control to pilot solenoid valves for automatic dosing
- Includes user-friendly software for data acquisition and device configuration
- Virtually maintenance-free operation for demanding industrial environments
Integration & functions
- Quick and cost-effective integration into existing control systems
- Real-time data logging and remote configuration via Modbus
- Optimized measuring surface and robust housing for stable results in polluted fluids
Applications
The sensor is optimized for monitoring concentrations in cutting oils, cooling lubricants and similar fluids. Typical sectors include electronics, precision mechanics, optics, automotive and general mechanical engineering where continuous concentration control is critical to machining quality and tool life.
Additional product information
- Designed for direct PLC connection via RS485 Modbus RTU
- Small form factor enables quick integration into constrained process environments
- Typical light source: 589 nm
Technical specifications
- Measuring scale: Cooling lubricants (CL) Scale
- Measuring range: 0…20.00 %wt
- Resolution: 0.1 %wt
- Accuracy: 0.3 %wt
- Reproducibility: 0.2 %wt
- Operating temperature: -10 to +60 °C
- Process pressure: max. 4 bar
- Interface: RS485 Modbus RTU
- Dimensions: 40 mm x Ø 44 mm
- Weight: 155 g
