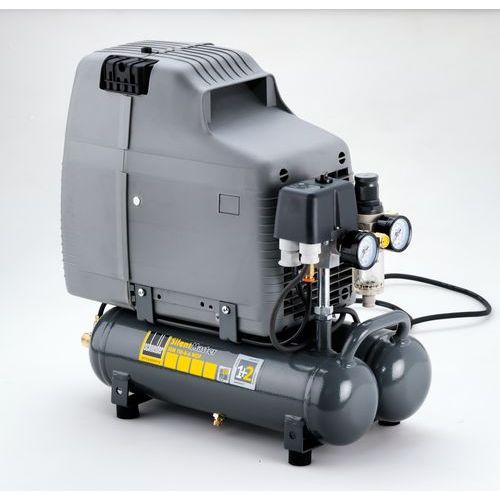

Piston compressor SEM 110-8-6 WOF
airelectrically-poweredportable

piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
portable
Application domain
industrial
Other characteristics
tank-mounted
Pressure

8 bar
(116.03 psi)

Flow

105 l/min
(27.74 us gal/min)

Power

0.75 kW
(1.02 hp)

Description

Close-coupled 1-cylinder piston compressor Integral handle for simple transportation 10-year guarantee against rust and corrosion on vessels Air outlet via filter pressure reducer Two pressure gauges for vessel and working pressure Reduced noise with sound absorbing cover Low maintenance thanks to oil-free compressor Extremely handy thanks to lightweight and compact design An oil-free compressor reduces maintenance and does not generate compressed air that contains impure oil from the compressor. Additional technical features: With all safety fittings, high-quality pressure switch, as well as 2 m device supply cable with rubber sheath, as standard Technical details GTIN/EAN - 4011666014993 Article number - 1121030819 Pressure - 8 bar Suction power - 105 l/min Inflation performance - 68 l/min Drive power - 0.75 kW Voltage - 230 V Rotational speed - 1,450 rpm Tank vol. - 6 l Weight - 18 kg Noise - 65 dB(A) Dimensions (WxDxH) - 430x210x430 mm

Catalogs

No catalogs are available for this product.

See all of Schneider Druckluft GmbH‘s catalogs
