Product or component type

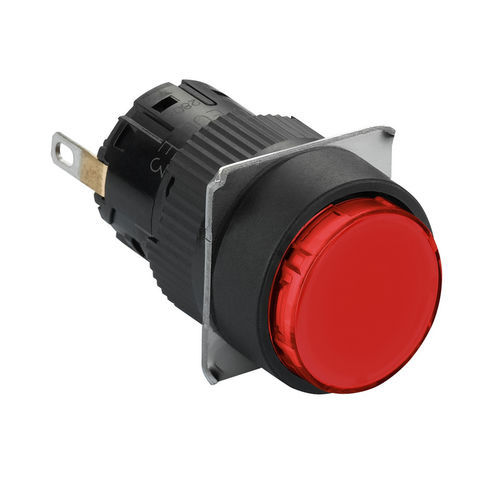

- Monolithic pilot light
Device short name
- XB6E
bezel material
- Plastic
Mounting diameter
- 16 mm
Sale per indivisible quantity
- 5
Shape of signaling unit head
- Round
Cap/operator or lens colour
- Red
light source
- Integral LED
Light block supply
- Direct
[Us] rated supply voltage
- 24 V DC polarised
Net weight
- 0.006 kg
Overvoltage category
- II conforming to IEC 60536
Operating position
- Any position
Marking
- CE
Connections - terminals
- Insulated faston, connection size: 2.8 x 0.5 mm
Solder terminal, clamping capacity: <= 0.75 mm² AWG 19
Fast connector socket
Tightening torque
- 0.6…1 N.m
[Ui] rated insulation voltage
- 250 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
- 2.5 kV conforming to IEC 60947-1
signalling type
- Steady
Current consumption
- 10 mA
Service life
- 30000 h
Ambient air temperature for storage
- -40…70 °C
Ambient air temperature for operation
- -10…55 °C
IP degree of protection
- IP65 conforming to IEC 60529
Standards
- IEC 60947-5-1
CSA C22.2 No 14
JIS C 852
JIS C8201-5-1
UL 508
IEC 60947-1
JIS C8201-1
product certifications
- cURus
CCC
Vibration resistance
- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance
- 10 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
