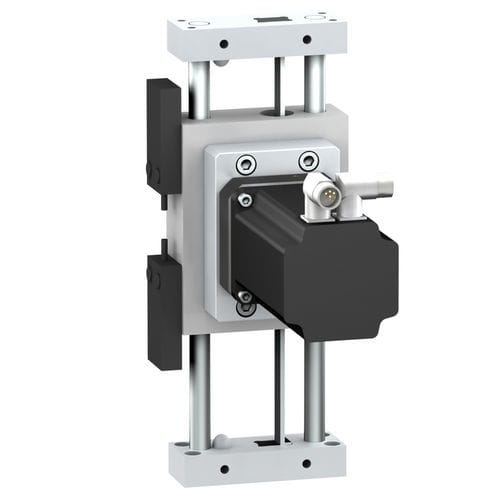

Cantilever axis with toothed belt drive CAS34BC
Add to favorites
Compare this product
Characteristics
- Options
- with toothed belt drive
Description
Range of product
- Lexium CAS
Product or component type
- Cantilever axis
Product specific application
- For 1 direction
Load position
- On the 2 end blocks
Drive type
- Toothed belt
Type of guide
- Ball
Operating position
- Vertical
Function available
- Anti-corrosion version
Different types of motor mounting
Anti-static belt
Operating force
- 705 N for Fx
950 N for Fy
820 N for Fz
Maximum speed
- 3 m/s
Acceleration
- 20 m/s²
Max. drive torque
- 11.5 N.m
Max. torque
- <45 N.m for Mx
<85 N.m for My
<100 N.m for Mz
Min. … Max. stroke
- 14…500 mm
Repeat accuracy
- +/- 0.05 mm
Service life
- 15000 km
