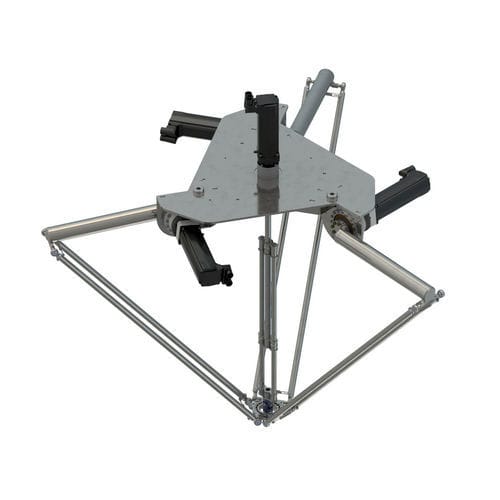

Delta robot VRKP5S0RNC000004-axis3-axis
Add to favorites
Compare this product
Characteristics
- Type
- delta
- Number of axes
- 4-axis, 3-axis
- Payload
15 kg
(33.069 lb)- Reach
Min.: 0 mm
(0 in)Max.: 1,400 mm
(55.12 in)- Repeatability
0.1 mm
(0.0039 in)- Speed
10 m/s
(32.8 ft/s)- Weight
80 kg
(176.4 lb)
Description
Range of product
- Lexium P, T
Product or component type
- Delta 3 robot
Device short name
- P5
Design
- Compact
ComplementaryNumber of axis
- 4
Operating position
- Rotational 360°
Repeat accuracy
- 0.1 mm
Maximum acceleration
- 90 m/s² at 1 kg
70 m/s² at 1.5 kg
Range compatibility
- Lexium SH3 motor
Packing UnitsUnit Type of Package 1
- PCE
Number of Units in Package 1
- 1
Package 1 Height
- 92.0 cm
Package 1 Width
- 120.0 cm
Package 1 Length
- 120.0 cm
Package 1 Weight
- 85.0 kg
