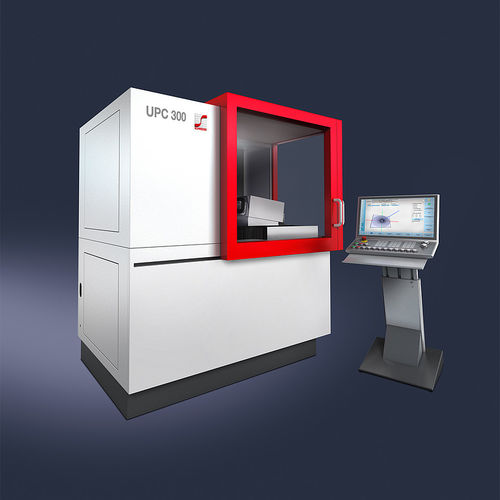

3-axis machining center UPC 300

horizontalopticalmodular

Introducing the UPC 300 The most accurate UPC 300 is a three axis machine (X, Z, C) designed for the highly dynamic machining of freeform surfaces. The optional long stroke Fast Tool increases significantly the productivity in freeform machining. The Fast Tool can process a wide range of freeform geometries without the need of time consuming Slow Tool machining - productivity and accuracy are combined in a very unique way. An optional B-axis enhances the functionality to optimally support the machining of diffractive structures or high aperture angles. A high-quality optical metrology system allows for the machine integrated contactless measurement of the entire freeform surfaces. In combination with the unique data handling capabilities a corrective remachining of freeform surfaces is possible to achieve highest precision. BENEFITS Highest productivity and throughputLong stroke Fast ToolUnique modular platformIntegrated high-quality optical metrologyMaximum data accuracy via single source data handlingHighest precision in freeform machiningMost modern control and drive technology TECHNICAL DATA work piece diameter: max. 300 mm, optional up to 700 mm axes: X, Z, C optional B, ZF linear axes: X-axis: 350 mm (hydrostatic) Z-axis: 350 mm (hydrostatic) axis straightness: X-, Y-, Z-axis: < 0.1 μm / 100 mm fast tool: ZF-axis: 30 mm (aerostatic) spindles: C-axis (low-resolution): 9300 rpm (aerostatic) C-axis (high-resolution): 2500 rpm (aerostatic) milling: 60000 – 80000 rpm (aerostatic) machine base: natural granite power consumption: max. 2.5 kVA avg. air requirement: min. 8 bar (116 psi) machine weight: approx. 2950 kg (6504 lb.)
