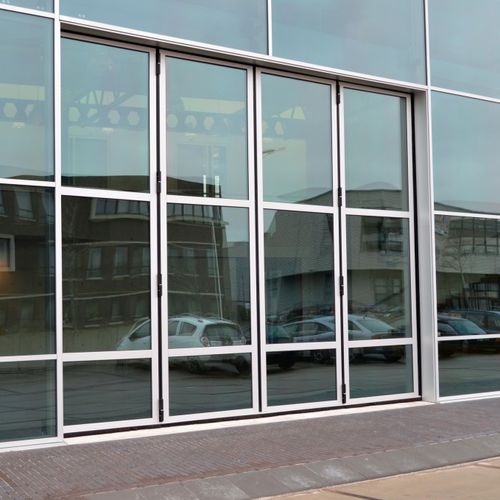

Folding door THERMO AL603SFslidingaluminiumglass
Add to favorites
Compare this product
Characteristics
- Type
- sliding, folding
- Material
- aluminium, glass, glazed
- Applications
- industrial, exterior, hangar, supermarket, garage, for hospitals, for the automobile industry, for shipyards, for car washes
- Other characteristics
- insulated, design, custom, motorized, high-resistance, weather-resistant
- Width
Max.: 15,600 mm
(614 in)Min.: 1,600 mm
(63 in)- Height
Max.: 5,600 mm
(220 in)Min.: 2,000 mm
(79 in)
Description
The innovative SCHNEIDER aluminium folding door AL603SF consists of specifi cally developed thermally separated profi les, which result in a substantially better thermal insulation than with normal profi les.
The AL603SF profiles are connected using a screw-/ plug-type system, forming a door with high torsional stiffness.
As with the AL602SF, solid running rails, hinges and corner connections enhance the high load capacity and thus also enable large glass panels.
Highlights
Thermally separated aluminium profile
Triple glazing with a U-value of 0.6 W/m²K
Design depth: 60 mm
Continuous triple glazing up to 2 m², max. height 4,200 mm
Area of application up to 15.6 m in width x 5.6 m in height › Reinforced adhesive joints at the frame corners
