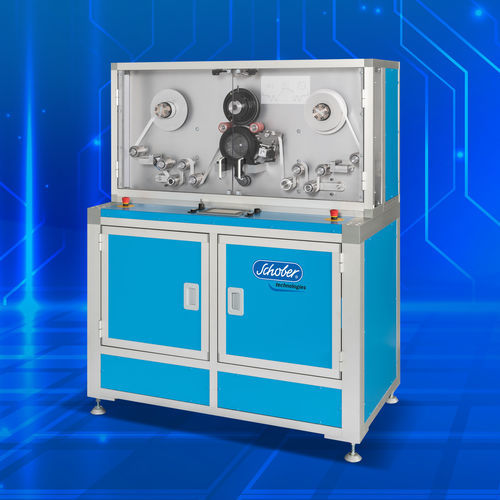

Plastic film perforating machine FLSM

Overview
FLSM – Film hole punching machine for narrow-web perforation of films, foils, nonwovens and cardboard. Compact precision unit designed for laboratory use and for medical, hygiene and technical (electronic) products. Standard working width up to 50 mm (2 in); other widths available on request. Maximum speed up to 80 m/min. Capable of producing round holes, elongated holes and special hole shapes.

Key features

• Working width (standard): up to 50 mm (2 in)
• Maximum speed: up to 80 m/min
• Maximum roll diameter: 300 mm
• Mechanical precision side edge control
• Pneumatic tensioning shafts for winding and unwinding (core diameter 3")
• Single-wall construction for easy tool change
• Suction bell with compact extraction system for collecting punched particles
• Web tension monitoring
• Minimum material thickness: 50 µm (depending on tensile strength)
• Short setup times

Applications

• Perforated films for hygiene products
• Perforated films for medical products
• Perforated films for technical and electronic products
• Processing of films, foils, nonwovens and cardboard

Stamps and die holders

• Freely selectable punching contours (round, elongated, special shapes)
• Punches and dies available; tool resharpening service in workshop to support sustainability

Technical specifications

• Model: FLSM (film hole punching machine)
• Working width (standard): up to 50 mm (2 in)
• Maximum speed: up to 80 m/min
• Roller diameter / max. roll diameter: 300 mm
• Core diameter for pneumatic tensioning shafts: 3"
• Mechanical precision side edge control
• Single-wall construction for easy tool change
• Suction bell with compact extraction system
• Web tension monitoring included
• Minimum material thickness: 50 µm (depending on tensile strength)
• Suitable materials: films, foils, nonwovens, cardboard
