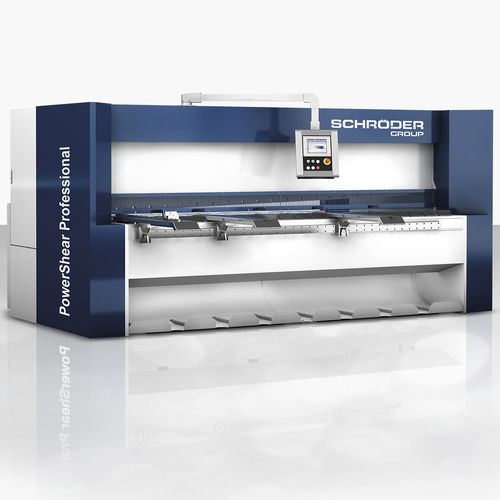

Hydraulic shear PowerShear

for sheet metalguillotineCNC

The hydraulic shear PowerShear integrates a huge number of technological innovations. The design of the extreme rigid machine body was engineered with state of the art tools, using the finite elements method and computer simulations and the drive concept has been completely renewed. Thanks to an energy-efficient drive with a converter-controlled motor and a hydraulic pump, the machine is able to handle the most difficult cutting operations and materials. The shear with a working length of 3000 mm is able to cut up to 6 mm steel sheet. Details 12″Touchscreen control PSC 150 on swivel arm (possibility of saving on CF-card or USB flash drive) Blades made for steel up to approx. 700N/mm² Energy-efficient drive with converter-controlled hydraulic pump Automatic calculation of motorized blade gap adjustment Automatic calculation of shear angle adjustment Frequency controlled motorized back gauge 10 – 1000 mm Sheet support, pneumatically controlled LED-cutting edge illumination Programmable start- and end position of upper blade 1 x lateral angle gauge 1000 mm standard with scale, mounted on left side 2x table extensions with T-slot, 1000 mm with scale (3x table extensions from working length 4040 mm) Closed sheet support table with exchangeable stainless steel plates incl. ball rollers Programming of cutting cycles Protection of rear side by safety light barrier
