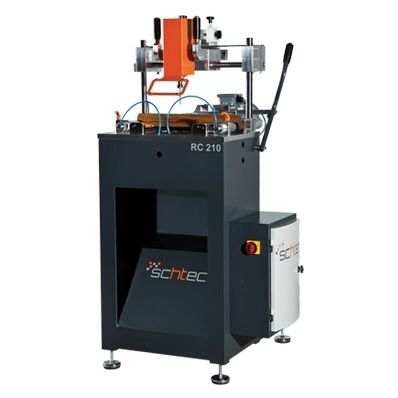

Spindle copy router RC 210

for PVCfor aluminumdrilling

Standard Features • Opens tilt system channel, drain slot, lock cylinders and door handle holes on PVC and Aluminium profiles • 1:1 ratio pattern transfer onto a profile from a template • Milling process is done by a high speed frequency controlled motor • Milling with adjustable measurement apparatus without using a template • Using 2 different size (5mm-8mm) bits on single template with 2 different step. • Pneumatic Profile Clamping • Left and right measurement centering system Optional ; • Cooling system for aluminium profiles Tehnical Information Power Supply : 400 V, 3 ph, 50-60 Hz Power Output Router : 0,75 kw Router Spindle Speed : 12.000 rpm Routing Capacity : 120 X 250 mm Air Pressure : 6-8 bar Air Consumption : 5 lt. /min. Machine Height : 1.470 mm Machine Lenght : 1.050 mm Machine Width : 720 mm Machine Weight : 125 kg
