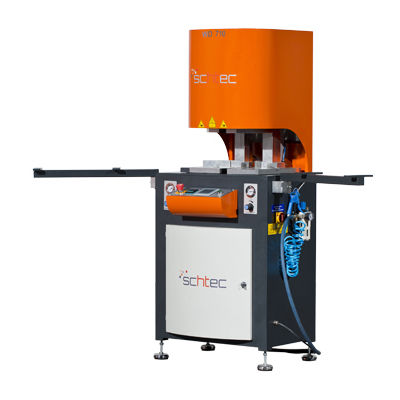

• Precision welding at variable angles between 30-180 degrees of PVC profiles
• Has the ability to weld with maximum strength.
• 0,2 mm welding seam restriction for both colored and white profiles
• Melting and combining times can be set digitally.
• Digital touchscreen display to control all operation
• Heating temperature and time parameters can be adjusted individually
• Homegenous heating with special heating plates
• More efficient and long lasting teflon thanks to special teflon system on the heating plates
• Specially designed mould system to gain time
• With support arms easy welding on big frames
Technical Informations
Power Supply - : 220 V, 1 Ph ,50-60 Hz
Power Output - : 1,5 kw
Air Pressure - : 6-8 bar
Air Consumption - : 90 lt. / min.
Max.Welding Length - : Limitless
Min.Welding Length - : 300 mm
Max.Profile Width ( 180 Degree) - : 190 mm
Max.Profile Width ( 90 Degree) - : 160 mm
Max.Profile Width ( 60 Degree) - : 125 mm
Max.Profile Width ( 30 Degree) - : 85 mm
Max.Welding Angle - : 180 degree
Min.Welding Angle - : 30 degree
Max.Profile Height - : 175 mm
Min.Profile Height - : 37 mm
Machine Height - : 1.670 mm
Machine Lenght - : 680 mm
Machine Width - : 700 mm
Machine Weight - : 210 kg
