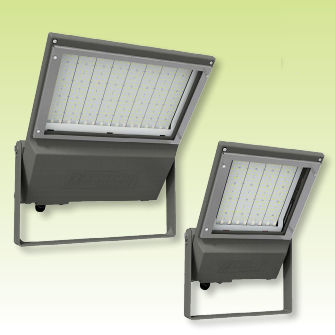

FOCO L / XL
LED Floodlight for sand/glass blasting area
Series 7700... SSK / 7700... SSK
Application:
Blasting cubicles and areas in which products are sand and glasspearl blasted
Design:
Housing: Die-cast aluminium, 2-parts, powder coated DB702N (mica-iron paint, grey).
Upper part: With LED- and optic-modules Lower part: With electronic ballast, glass cover, cable entry with cable relief, retractable.
Glass: Flat safety glass pane, resistent to temperature changes, impact resistant IK10. Additionally, one easy replaceable polycarbonate protective cover in a stainless steel frame in front of the glass pane, silicone gasket.
Light distribution: Narrow-wide
Connection: 3-pole terminal, max. clamping range 2,5 mm².
Cable entry: 2 cable entries M20 x 1.5 (1 cable gland and 1 screw plug).
Mounting: Mounting bracket, swivel range 180°, with 3 drillings for wall- or ceiling mounting.
Electrical design:
LED module: Zhaga compliant, 4,000K, Ra > 80, lifetime L80 > 100,000h
ECG: 220-240V, 50-60Hz, Surge voltage resistance 10kV, excess temperature protection, overload and short circuit protection.
Note:Due to the inrush current of the electronic ballasts, the maximum permissible
number of light fittings per circuit breaker is limited.
Ambient temperature: -40°C up to +35°C
Product highlights:
• Reliable protection of the safety glass against damage and „blindness” due to blasting material
• ECG with surge voltage resistance, reliable due to overload, short-circuit and overheating protection
• optimized thermal management due to direct adaption of the LED-modules to the die-cast aluminium housing, large cooling surface, excellent heat dissipation
