Bevel gear

transmissionfor motorsprecision

Description

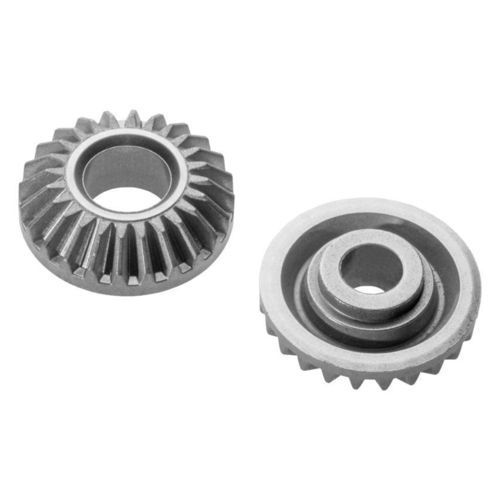

Two paired bevel gears act as the functional gearset within an actuator to transmit the electric motor's torque to the lifting linkage while redirecting it by 90°. The design is optimized for very high-volume, off-tool production while meeting strict safety and quality requirements, including zero-defect manufacturing, strict cleanliness control and tight dimensional tolerances.

You benefit from these advantages:

• Efficient transmission of motor torque
• Cost-effective off-tool solution for high-volume production

Applications
Used in actuators for roof domes, solar modules, adjustable desks and similar lifting or deflection mechanisms.

Technical characteristics / specifications

• Configuration: Two paired bevel gears per actuator
• Function: Transmit motor torque and deflect it by 90° to the lifting linkage
• Manufacturing: Engineered for very high-volume, cost-effective (off-tool) production
• Quality requirements: Zero-defect production and strict cleanliness control
• Tolerances: Compliance with very low dimensional tolerances
