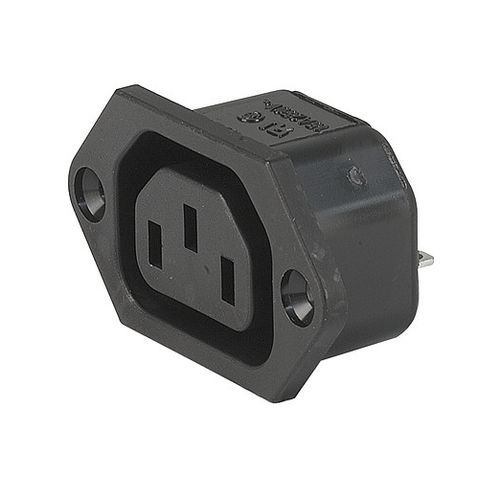

Panel-mounted electrical socket 6600-3IP303-polescrew-in
Add to favorites
Compare this product
Characteristics
- Mounting
- panel-mounted
- Protection level
- IP30
- Number of poles
- 3-pole
- Features
- screw-in
- Other characteristics
- IEC, RoHS, eco-friendly, sustainable
- Current
10 A, 15 A
- VAC
250 V
Description
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
• Panel mount: Screw-on mounting front side
• 1 Function
• Solder / Quick Connect
Unique Selling Proposition
• Variants made from plant-based plastics with 2.75 kg CO2 reduction per packaging unit
• The plant-based plastics meet the increased glow wire test
requirements according to IEC 60695-2-12 and -13
• For use in unattended household appliances according to IEC 60335-1
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
