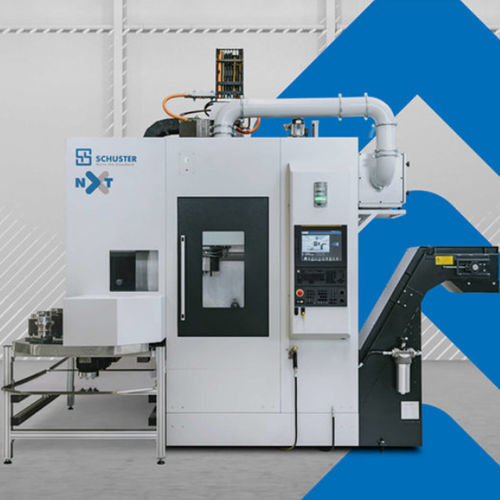

2-axis CNC machining center NXT

verticalHSK-63drilling

With nxt, Schuster gives you access to a whole new territory. Specifically, the world of automatic vertical machining for customized series production in which you benefit from all of the advantages of a pick-up lathe: from the compact, space-saving structure and user-friendly design to optional, customized features and savings in both energy and costs, thanks to especially high production capacity in a small space. READY TO MACHINE Even the most basic version of the Schuster nxt has exceptional features. For example, the machine base made of 100% polymer concrete, the guide systems (45 mm guideways in the X and Z directions) and the high-precision spindle with extra-large spindle bearings (120 mm) and an A6 spindle nose. The highlight: The machine is available as either a left-hand or right-hand version, depending on your site situation. Both FANUC and SIEMENS can be used. MILLING WITH A TURRET Milling slots and machining cross-bores or key flats on the circumference or on the face are among the many machining operations that can be performed professionally, economically, and quickly with our driven tool turret. The ability to choose between VDI40 and BMT55 with the tool turret is a good argument for complete machining. PRECISION DRILLING For the greatest precision when drilling holes positioned either within or outside the center of rotation, the Schuster nxt is also available with a HSK63 drilling, milling, or reaming spindle. When combined with Schuster’s patented spindle clamping system, this machine version can perform precision series drilling that would otherwise not be possible.
