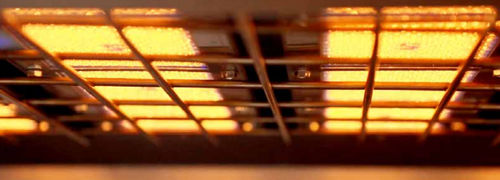

Radiant burner

gasdirect firedfor food

Schwank Burners & Tiles Brochure Learn all about the benefits of the burner technology by Schwank. Heat Output Demand The heart of ail Schwank burners is the ceramic burner tile. Within its 3,600 concave holes the gas-air mixture combusts homogenously and cleanly. Due to its spécial structure the surface, the ceramic tile reaches températures of 960° C [2,100° F] emitting infrared radition of 150 W/cm2. On the surface of a 120 cm2 ceramic tile, a heat output of 0.6 - 1.8 kW can be genera-ted. ■ Patented Infrared Radiation The radiant efficiency is the determing factor for most thermal engineering applications. In order to positively influence the radiation energy, high quality materials and surface characteristics are of great importance, ce-raSchwank features a patented recipe and a spécial surface with a honeycomb structure providing a higher radiant efficiency than ordinary plane surfaces. ■ Clean Combustion Gas-fired burners with Schwank ceramic files operate in a very ecological way with low émissions. Due to a highly homogeneous combustion, thermal NOx and CO are reduced to an absolute minimum. Due to its properties ceraSchwank ranks among the most efficient and environmentally friendly ceramic burner tiles in the world. Operational Lifetime Another core feature of Schwank ceramic tiles and burners is the practically unlimited durability. The high quality ceramics do not reveal any noticeable wear or corrosion even when being subject to an arbitrary number of hot/cold cycles throughout the burner life-cycle.
