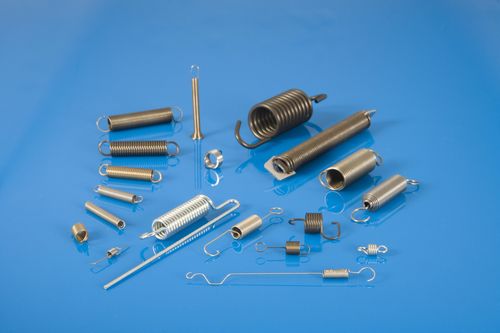

Traction spring
wiresteel

traction spring
traction spring
traction spring
traction spring
traction spring
traction spring
traction spring
traction spring
Add to favorites
Compare this product


Characteristics

Function
traction
Type
wire
Material
steel
Outer diameter

Min.: 0.1 mm
(0 in)

Max.: 8 mm
(0.3 in)

Description

Dimensional Range Wire diameter 0.05 – 9.00 mm Wire cross section: round, square, rectangular Common Tension spring Materials EN 10270-1 patented drawn spring steel wire EN 10270-2 oil hardened and tempered spring steel wire EN 10270-3 stainless spring steel wire Detailed information on our materials can be found in our detailed table of materials. Designs Loop Shapes: Half german loop, full german loop, double german loop, full german loop inclined upwards at 60° angle, extended hook, hook rolled into spring, thread fitting screwed into spring, shackle screwed into spring, individual loop shapes Loop Positioning: 0°, 90°, 180°, 270° Surface Finishing Gold-plating, silver-plating, nickel-plating, tin-plating, zinc-plating, chrome-plating, Delta Tone, Delta Seal, zinc-flake-coating, phosphatisation, molykoting, gliss coating, colouration, varnishing, powder coating, shot-blasting, glass bead blasting
