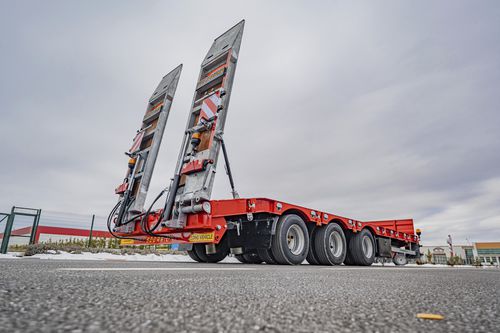

Flatbed trailer HKM1

air-suspension3-axletowed

CHASSIS: ST52 main frame in accordance with EU 53-62 Standards. AXLE GROUP: 11 – tonner 3 pcs R:17,5” European Brand (SAF HOLLAND) or Turkish Brand. SUSPENSION: Air Suspension. TIRES AND RIMS: Tire options suitable for 17,5” rims. ELECTRICAL SYSTEM: 24 V Electrical system in accordance with European Standards. BRAKE SYSTEM: EBS brake system (4S/2M) (4S/3M) in conformity with 71 /320 / EWG or ECE R 13 Regulations. RAMPS: Hydraulic or manual operated ramps with appropriate dimensions according to the customers’ preferences. TANDEM: Made from ST52 reinforced steel, mounted to chassis and front wall, with 50mm eye and can be adjusted in mechanical system. LANDING GEAR: 650 mm mechanical landing leg. REAR STABILIZER BARS GROSS WEIGHT: 33.000 Kgs LADEN MASS WEIGHT: 25.500 Kgs PAINT & GALVANIZATION Painting or galvanizing options are available according to the customers’ requests. Main chassis and entire vehicle will be painted in paint oven as Washing + Sandblasting + two coat epoxy primer + two coat acrylic paint. ACCESSORIES WHEEL CHOCK: Plastic (2 Pcs). TOOL BOX: Plastic (2 Pcs, Lockable). FENDER: Plastic Fenders. REFLECTORS: 42x42mm. Reflectors and anti-spray mud laps in accordance with European Standards. OPTIONS RAMPS: Sliding of ramps inside and outside, foldable ramps. SELF-STEERING AXLE GALVANIZATION: The chassis and superstructure are immersed in the liquid zinc pool at 450 degrees C and the whole surface is covered with zinc. It provides protection against rusting and corrosion between 30 and 40 years by galvanizing.
