4 ton car repair bench QB5000with pulling arm10 ton20 ton
Add to favorites
Compare this product
Characteristics
- Maximum load
- 4 ton
- Other characteristics
- with pulling arm
- Pulling strength
- 10 ton, 20 ton
- Lifting height
Max.: 1,600 mm
(62.992 in)Min.: 125 mm
(4.921 in)
Description

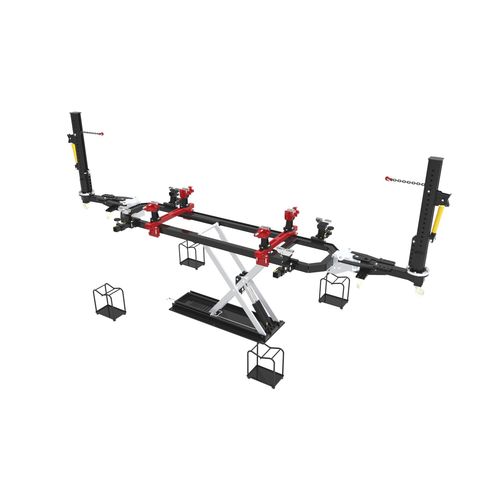

QB5000 is a 5 meter pulling bench ideal for all body shops. On it you can clamp small cars, limousines, commercial vehicles, mini buses,TRUCK CABINS AND SMALL TRUCKS etc.. with overall length of more than 6,50 m !!
It has 2 sets of 10 and 20 ton pull posts that can be mounted anywhere (360°) around the bench, keeping the pulling power the same at any height.
During pulling the chain never changes its angle.
Technical details: -
Frame length - 5000 mm
Frame width - 880mm
Electro-Hydraulic unit - 500 bar and 700 bar
Inclusive: -
Pulling tower 10 Ton - 1 Piece
Pulling tower 20 Ton - 1 Piece
Clamps - 4 pieces
Rubber pads - 4 pieces
Wheel stands - 4 pieces
Beams - 4 pieces
Electro-Hydraulic unit - 1 piece
Chain with hook - 2 sets
Pulling clamps - 2 pieces
Air-Hydraulic pump - 2 piece
Horizontal beam 1800mm - 2 sets
VIDEO
