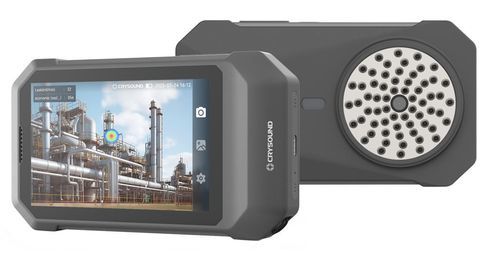

Microphone array camera CRYSOUND POCKET

industrialdetectioncorona and partial discharge detection

Overview
The CRYSOUND POCKET is an ultra-portable handheld acoustic imaging camera for industrial inspections. It overlays a live soundmap onto a digital image to enable technicians to pinpoint sound sources, document findings and act with confidence. Designed as a one-per-person field solution for fast deployment across industrial sites.

Key Capabilities

• Real-Time Heatmaps: See sound sources on a live video feed using a 64-channel microphone array.
• Broad Frequency Range: Detects from 2 kHz to 65 kHz, covering both audible and ultrasonic signatures.
• Extended Range: Inspect assets from a safe distance of 0.3 m to 120 m.
• Auto-Selection: Algorithm-assisted frequency selection simplifies use for new users.

Main Applications

• Compressed air & gas leak detection (including vacuum, nitrogen and steam systems; effective in high-noise environments).
• Partial Discharge (PD) screening — rapid PD hotspot identification (No PRPD).
• Mechanical troubleshooting — locate air loss in HVAC ducting and faults in pneumatic control lines and hard-to-reach fittings.

Operational Features
Non-contact inspection method that locates leaks faster than traditional soap-bubble tests or manual probes; effective on complex manifolds, overhead lines and fittings where physical contact is impractical or unsafe. Facilitates maintenance planning by visually identifying electrical and mechanical anomalies.

Built for Field Use
Smartphone-like workflow requiring minimal training. Device is drop-tested to 1.5 m and rated IP54 to withstand daily field use in tight or elevated spaces.

Seamless Reporting Workflow

• One-Tap Capture: Save photos, videos and audio directly to the 32 GB internal storage.
• Instant Sharing: Built-in WLAN hotspot and on-device sharing via the Acoustic Link workflow.
• Standardized Reports: Export data via Wi‑Fi or USB‑C to generate professional inspection reports on PC or mobile devices.

Availability
Available only in Europe and French-speaking African countries.

Technical specifications

• Model family: CRYSOUND POCKET
• Microphone array: 64 channels (live soundmap overlay on video)
• Frequency detection range: 2 kHz to 65 kHz
• Inspection distance: 0.3 m to 120 m
• Internal storage: 32 GB
• Connectivity: Built-in WLAN hotspot, Wi‑Fi export, USB-C
• Reporting: One-tap capture of photo, video and audio; standardized export capabilities
• Assisted operation: Algorithm-assisted frequency selection (auto-selection)
• Ruggedness: 1.5 m drop-tested body; IP54 protection
• Main applications: Compressed air & gas leak detection, Partial Discharge (PD) screening (No PRPD), Mechanical troubleshooting
• Region availability: Europe and French-speaking African countries
