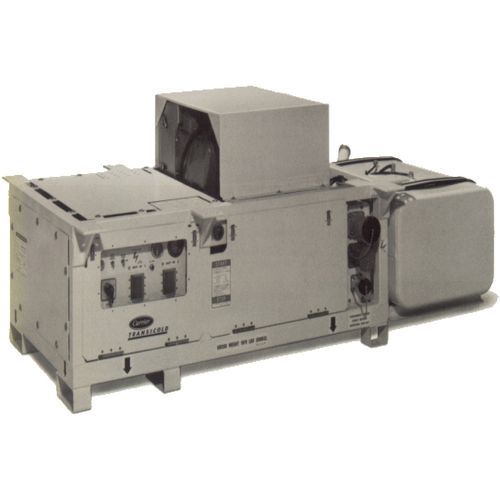

Diesel generator set SB573

three-phasecontainerized60 Hz

• The “underslung” generator set is designed to mount under the chassis trailer frame. The air cooled diesel generator can provide continuous (dual voltage) electrical power to intermodal refrigerated containers. • The unit is self contained with an integral 50 U.S. gallon (189 liter) fuel tank combined with the engine, generator, battery and all operating controls. • 230V Receptacle 250VAC, 50 amps, Carrier P/N 22-01286-00 (Micpo P/N 1101-02) • 230V Receptacle 250VAC, 60 amps, Carrier P/N 66U1-3863-1 (Micpo P/N 1102-01) • 460V Receptacle CEE-17, 460VAC 32 amps Carrier P/N 22-01561-00 • 230V Standard 50 amp plug - 230V Standard 50 amp plug - 460V Standard 32 amp plug • This unit is designed for quick fitting to nearly all standard ISO chassis trailers • ENGINE Deutz model F31-912 air cooled, three cylinder, 173 cubic inch (2836cc) displacement, four cycle engine 31.5 BHP continuous.
