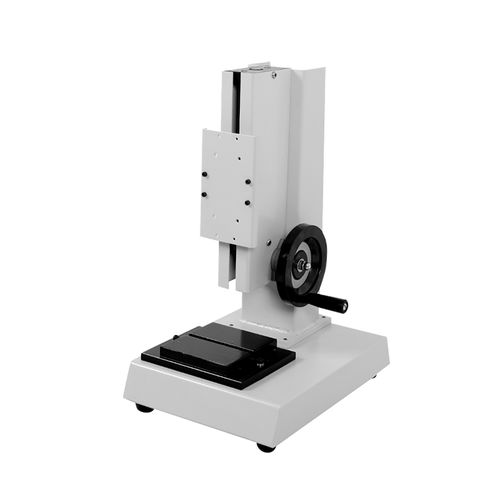

Force test stand FGS-200W

compressiontensionpull

includes a robust housing with a large, adjustable stand base. The FGS-200W is designed for use with a mechanical or digital force gauge. When combined with appropriate grip or attachments, this test stand can accomplish a variety of push/pull compression and tension as well as strength and destruction testing. Its side hand wheel loading is driven by an accurate screw displacement which achieves readily consistent, stable motion on that produces repeatable force tests. The FGS-200W possesses a slotted groove in the table base that contains two movable M6 threaded connectors which allows quick attachment grip installation. Also, the table base is easily adjustable with its four-way movement, providing for a simplified installation by reducing time to align the test grips with the mounted gauge adapter. Compact footprint & lightweight enables usage in most locations. Fine movement from the side wheel aids in precision testing. 220 lbs (100 kg) maximum testing capacity. Slot within table base contains two sliding M6 threaded connectors combined with adjustable table aids in testing set-up. Digital Scale kit available for high resolution movement recording.
