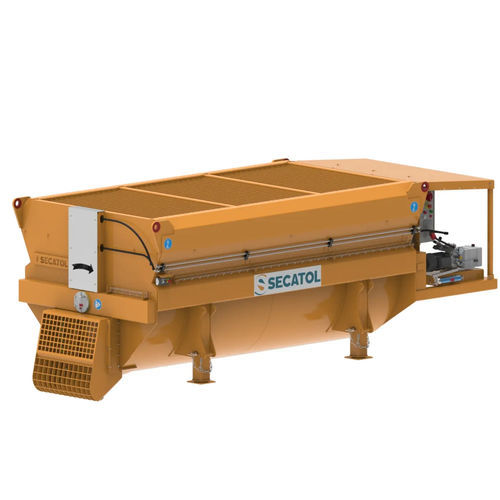

Agitating hopper PSE TH

storageconcretefor mortar

The hopper is designed to store, stir and distribute concrete into skips, concrete pumps and other hoppers. The concrete is stirred by a horizontal shaft fitted with arms; on top of those arms are fitted tilted blades which are stirring and pushing the concrete towards the discharge gate. Capacity: from 3 000 L to 13 000 L Equipement • Agitating attachment driven by an electric moto reducer • Gate opening operated by a hydraulic jack powered by an hydraulic unit. • 4 height adjustable feet. • Centralized manual lubrication Commands Stirring command located on the main electric cabinet. Gate opening system controlled by a switchbox located near the gate. Remote control also available to operate the gate. Terms of use: concrete with a grain size up to 30 mm and a slump of more than 70 mm. For upper grain size, contact us. Power supply : 400V – 32 A Options • Framework • Walkways • Laser level indicator • Manual swivel and tilt chute • Secured swivel grates • Automatic lubrication unit • Tarpaulin
