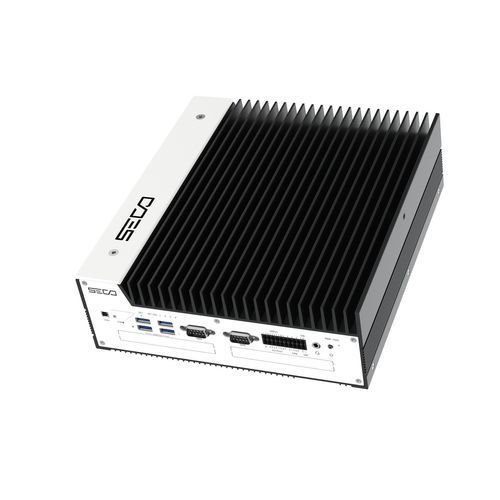

EDGE PC Palladio 400 RPL

Edge AIAIembedded

Overview
Modular fanless embedded industrial PC designed for edge and AI applications, based on 13th Gen Intel® Core™ processors with multiple expansion options and rugged operating ranges.

Highlights

• CPU: 13th Gen Intel® Core™ i3 / i5 / i7 / i9 (Raptor Lake‑P)
• Graphics: Up to Intel® UHD Graphics 770 (CPU dependent)
• Memory: Up to 32 GB SO‑DIMM DDR4 2666
• Video: 2x DisplayPort, up to 4K @60 Hz

Security & Compliance
Built‑in Secure Boot for platform integrity, optional TPM and PTT BIOS settings, watchdog timer, secure OTA updates and Yocto‑based secure OS integration. Compliance documentation available for applicable standards (EN18031‑1 referenced).

Product details
Compact, modular design with multiple M.2 and SATA storage options, ModBay expansion slots and industrial I/O for AI and automation deployments at the edge. Flexible networking with dual 2.5 GbE (PoE optional) and optional M.2 Wi‑Fi/BT module.

Technical specifications

• Model: Palladio 400 RPL
• CPU options: i3‑13100E / i3‑13100TE / i5‑13500E / i5‑13500TE / i7‑13700E / i7‑13700TE / i9‑13900E / i9‑13900TE (see variant details for frequencies, cores/threads and TDP)
• Memory: Up to 32 GB SO‑DIMM DDR4 2666
• Graphics: Up to Intel® UHD Graphics 770
• Storage: Up to three M.2 2280 (SATA / PCIe Gen4 x4) plus 2x 2.5" SATA (optional hot‑swap)
• Networking: 2x 2.5 GbE LAN (PoE optional), optional Intel® M.2 2230 802.11ac Wi‑Fi + BT 5.1
• I/O: 6x USB 3.2 Gen 2, 1x 3.5 mm audio, 2x COM RS‑232/422/485, GPIO (DIO, CAN), 2x 3FF Micro‑SIM
• Power: 12–48 VDC (20–48 VDC with high‑power PCIe expansions)
• OS: Compatible with Linux and Windows; Yocto‑based secure OS available
• Operating temp.: -40°C to 70°C (with 35W CPU); -40°C to 50°C (with 65W CPU)
• Dimensions: 240 x 82 x 267 mm

Variants / Part numbers (examples)

• SF‑K840‑RPL‑01‑00 — Intel Core i3‑13100TE, TPM 2.0, 2x 2.5 GbE, 2x8 GB DDR4 2666, 128 GB M.2 SATA SSD, Wi‑Fi/BT 5.1
• SF‑K840‑RPL‑02‑00 — Intel Core i5‑13500TE, TPM 2.0, 2x 2.5 GbE, 2x8 GB DDR4 2666, 128 GB M.2 SATA SSD, Wi‑Fi/BT 5.1
• SF‑K840‑RPL‑03‑00 — Intel Core i7‑13700TE, TPM 2.0, 2x 2.5 GbE, 2x16 GB DDR4 2666, 256 GB M.2 SATA SSD, Wi‑Fi/BT 5.1
