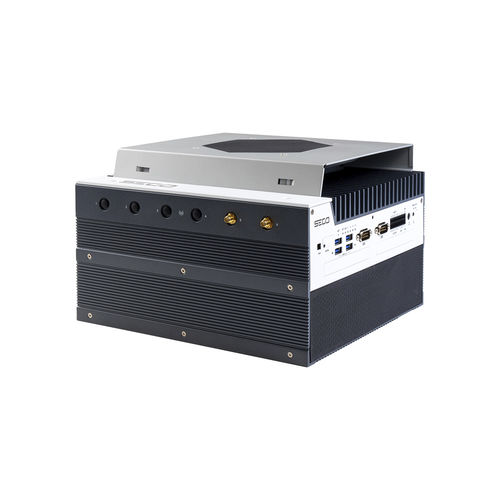

Box PC Palladio 500 RPL

Edge AIembeddedIntel® Core™ i5-13500E

The Palladio 500 RPL is a powerful, modular industrial PC with PCI express capabilities to support GPUs and AI accelerators for superior AI applications. Dedicated to OEMs who need a ready, high-power industrial PC, the Palladio 500 RPL can enhance production flow, connecting to multiple machines and collecting, analyzing, and processing data on the edge before sending it to the cloud. Graphics - Up to Intel® UHD graphics 770 (processor dependent) Video Resolution - Up to 4K @60 Hz Audio 1x 3.5mm audio Other Interfaces 5-Pin terminal block power Input (12~48 VDC) 2x ModBay expansion 7-9.5mm (optional) 1x GPIO terminal block (DIO, CAN, Ext. Switch) 2x 3FF Micro-SIM 1x power button 1x external fan connector 2x 2.5” hot-swap drives (optional) Security PTT in BIOS TPM (optional) Watchdog timer Operating Temperature - -40 to 70°C (w/ 35W CPU) -40 to 50°C (w/ 65W CPU) Dimensions - 240 x 143 x 267 mm
